Smart DISK

Categories: , , , , , SKU: MUSSMA101

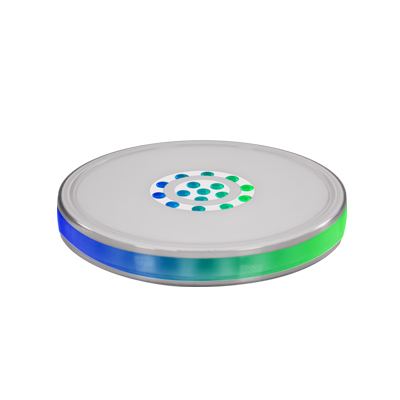

SmartDISK is an IP rated, wireless battery powered RGBW LED table centre.

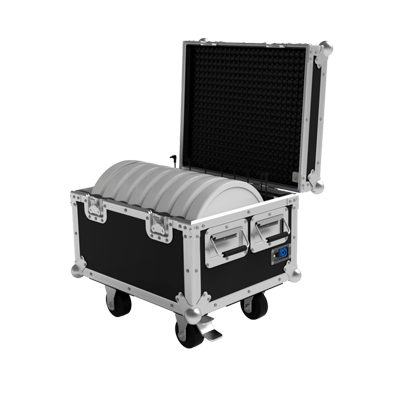

Set of 8 units in a case.







Description

Designed for both branding events and adding a controllable element to a table – it adds an extra dimension to any event design.

Features:

  • Battery powered and wireless DMX control for fast deployment and accurate control
  • Separate control of each RGBW LED pixel of up-light and side-light for dynamic effects
  • Available in a SMARTDISK PACK featuring 8 lights with accessories in an ABS case



LIGHT SOURCE

Source: 39×0.25W RGB + warm white

CT: 2800~6000K

Source life expectancy: >30.000 h



OPTICS

Beam angle: 360° to light up tables and 25° to light up objects on top

COLOUR SYSTEM

Colour mixing: RGBW/FC

Macros: several pre-build pixel macros with adjustable speed



DYNAMIC EFFECTS

FX generator: adjustable foreground/background colour, index, speed, direction

Static colour mode: selection of static colour

Manual colour mode: manual adjustment of colour



BODY

Body: sturdy policarbonate body

Body colour: white



CONTROL

Protocols: W-DMX

DMX channels: 4 / 8 / 17 / 165channel

Pixel control: pixel2pixel control

W-DMX: included, wireless solution receiver

Display: LCD display

Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included

IR: infrared sensor controlled by remote



ELECTRONICS

Dimmer: linear 0~100% electronic dimmer

Dimmer curves: different dimming curves available

Strobe / shutter: 1 – 30 Hz, electronic

Operating temperature: -10° ~ +45°



ELECTRICAL

Power consumption (at 230V): 19.9W



BATTERY

Battery: 4.4 Ah – 11.1V lithium

Estimated battery life in colour change mode up to: 15h

Estimated battery life in single colour mode up to: 24h

Estimated battery life in full-mode up to: 8h

Re-charge connection: power cable

Re-charge time: 5h/max

Battery status: shown on display



PHYSICAL

Data connection: W-DMX receiver

IP rating: 54

Dimensions (WxHxD): 300x40x300mm

Weight: 1.62kg

SMARTDISK_manual.pdf 1.81 MB
