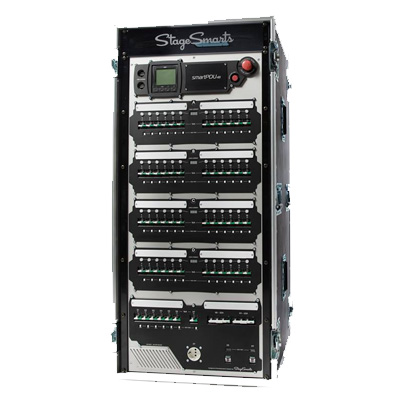

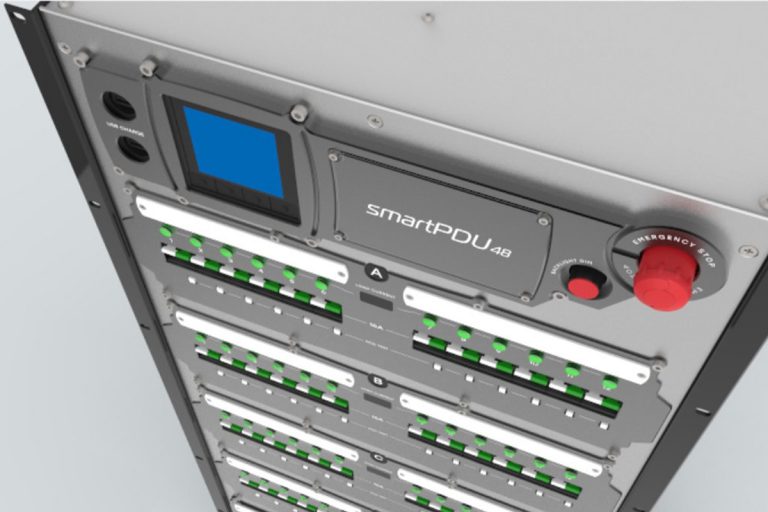

SmartPDU 48 Channel

Categories: , , , , , SKU: SMAPDU048

The smartPDU series sets a new standard in functionality, flexibility, reliability and safety. It is suitable for all applications; from the smallest venue to the largest tour.



Description

Engineered to meet the tough requirements of the events market, the smartPDU helps you to keep track of the situation at any moment, protecting your connected equipment and crew and, when needed, assisting you in diagnosing problems. smartPDU – power just got smarter

Operational features
• True load monitoring – quick and easy overview of output loading. Catch potential problems before breakers trip, find channels with spare capacity and more.
• Remote supervision – the networked system enables you to quickly view the status of all smartPDU’s in your system from any location on any device with a browser.
• Backlit marking strips – keeps your channel information clearly visible without external lighting.
• Superior circuit breakers – all breakers hold their rated current regardless of temperature. Immediate reset possible.
• Quick and easy to reconfigure – all main output connectors can be changed a minute, from Socapex, to Harting, to Powercon.

Safety features
• All outputs are fitted with individual RCDs (“earth leakage protection”) to maximise electrical safety while also minimising the impact of any electrical fault.
• Emergency stop for immediate shutdown.
• Loss of neutral protection prevents costly damage to connected loads caused by over-voltages.
• All breakers perform full electrical isolation in their “off” position.
• Sealed, industrial grade circuit breakers (IEC 60947-1) to ensure reliable operation in dusty or humid conditions.

POWER INPUT/THROUGHOUT CONNECTORS:

  • Powerlock 500 A, 5-wire (TN-S) 230/400 V



MAIN CIRCUIT BREAKER

  • MCCB 4-pole, 400 V, 500 A
  • Overvoltage protected
  • Immediate disconnect in case of lost Neutral connection



MASTER METERING

  • Input voltage and current
  • All output voltages, currents (including Neutral), power factor and frequency



OUTPUT CHANNELS

  • Connector options: Socapex 19, Wieland, Neutrik PowerCON



MAIN OUTPUT CHANNELS

  • smartPDU 72: 72 outputs
  • smartPDU 48: 48 outputs
  • smartPDU 36: 36 outputs



AUXILIARY OUTPUT CHANNELS, SINGLE PHASE

  • All units: 6 outputs
  • RCBO breakers, 2-pole, 16 A, 30 mA earth leakage current
  • Australian GPO 15A, 3-pin



CONVENIENCE OUTPUT CHANNEL, SINGLE PHASE

All units: one output channel with

  • 2 x Australian GPO 10A sockets
  • 1 x Neutrik PowerCON NAC3MPB power out socket
  • 1 x Neutrik TRUE1 NAC3FPX power out socket

AUXILIARY OUTPUT CHANNELS, THREE PHASE

  • All units: 2 outputs
  • MCB breakers, 4-pole, 32 A
  • Clipsal 56 Series Wilco or CEEform connectors, 5-pin
  • RCD, 50 A, 30 mA earth leakage current



THERMAL

  • Maximum ambient temperature: 40° C
  • Minimum ambient temperature: 0° C
