Description

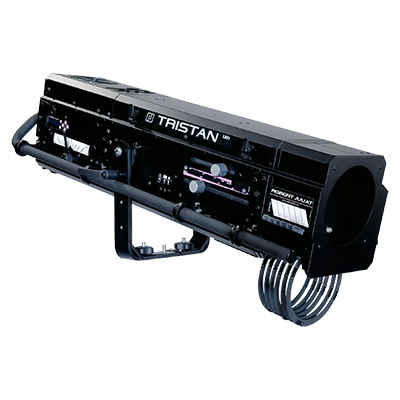

Unique to Tristan, the motorised iris enables the creation of iris presets. It will be equally at ease in front-of-house, truss and backlight positions.
Features:
• Motorised fully closing iris: makes it possible to store presets for fast cues
• Colour Temperature (CCT): adjustable whites from 3000 to 6300K
• Universal adjustable gobo holder: “A” size glass and metal gobos
• Ergonomic dimmer control: one-handed dim, pan and tilt
• Local control: light intensity and beam size (iris) adjustment through built-in potentiometers
• Frost filter: on flip lever for quick soft-edge beam effect
• Horizontal chopper (optional): for masking control in TV studios and wide stages
• Internal glass filter holder: long term use of durable coloured, dichroic or textured glass
• Individually removable colour frame: gels replaced easily while colour cassette remains in place
• Colour changer: 6-way, self-cancelling boomerang colour-changer
• Remote display: an optional second display can be connected anywhere on the unit to have simultaneous view of the stage and iris / intensity values
• Remote controllers: optional controllers can be connected to operate the followspot from any position (back, side…)
• Adjustable response time: choice of fast or slow dimming for tungsten-like simulation – adjustment by DMX protocol
• Ethernet-DMX node: data IN through RJ45 connector; data OUT through DMX for daisy chaining
• Universal data control: compatible with DMX, RDM, Art-Net, sACN protocols
• Remote setup: all parameters can be adjusted by RDM protocol or by web interface
• PWM adjustment: choice of different PWM dimming frequencies continuous mode available
• Advanced Ethernet node functionalities: compatible with RDM, LLRP, Zeroconf protocols
• Local setup: DMX address and mode, dimming curve and response time through 4-button display with automatic light switch-off
• Dimming parameters: choice of square or linear dimming curves
• DMX: 8 or 16 bit dimming, iris, response time and strobe function
• Easy focus reference: graduated scale on side of the unit; fast and easy refocusing
• Stand: perfectly weighted for maximum stability with smooth rotation for optimum performance. Easy set up; triple safety system for extra security
