Wi-Fi Box

Categories: , , , , SKU: LEDCON001 Tag:

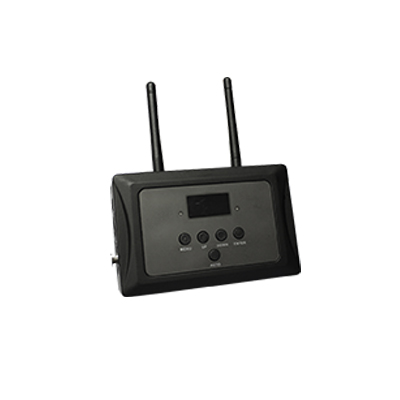

The WIFI BOX turns your mobile phone or tablet through the Koala app into a wireless controller giving you the freedom to control your Nitec or ShowPRO products from the palm of your hand.

OUT OF STOCK – Please call your nearest office for more information or a recommended replacement product.



Description

The Wi-fi box features:

  • 2.4 GHz transmitter/receiver for wireless DMX control of UFI-enabled fixtures
  • Built-in receiver module enables control via UFI-enabled controllers
  • built-in module transmits 2.4G wireless DMX signal to UFI-enable fixtures
  • DMX XLR IN accepts signal from standard DMX controller
  • DMX XLR OUT sends signal to any DMX fixtures
  • Auto-discover feature enables convenient synching with fixtures
  • Manual or automatic channel selection
  • OLED display and menu navigation
  • Surface, truss and pipe mounting options

Download the app for Android here

DMX Channels 512 (one universe)
DMX Connection 3-pin XLR In/Out
Operating Frequency 2.412 – 2.484 GHz
Antenna connection RP-SMA
Max Distance 180 meters
Power consumption 4W
Input Voltage 9V DC, 500mA external adapter (included)
Dimensions 142 x 91 x 46 mm
Weight 0.6 KG

App for wifi box https://play.google.com/store/apps/details?id=com.showtech.SHOWPRO&hl=en

Datasheet.pdf 523.8 KB
