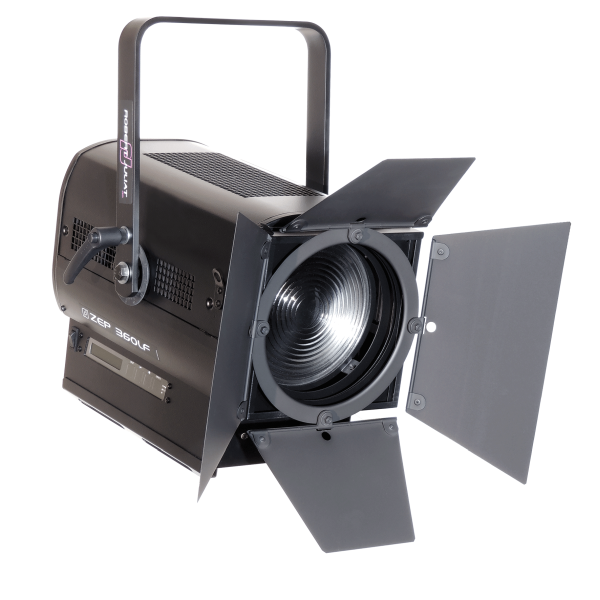

ZEP2 360 LED Fresnel CW

A high output, warm white LED source, 200 mm Fresnel lens and great beam quality, combine with an electronic flicker-free dimmable PSU to create a powerful yet economical LED washlight. Great for TV studio, theatre, event and architectural applications.



Description

Presenting an exceptionally flat and variable beam angle, this LED Fresnel is ideal for fill lighting in TV Studios. Beam shaping can be achieved with great precision by the addition of RJ’s unique, individually rotatable barn doors.

Lens Size: 200mm

Variable beam angle 11°  to 68°

Constant colour temperature when dimming

Built-in electronic flicker-free dimmable PSU

Silent operation

Local and remote DMX control

Features

  • Theatre front cassette: no light spill to distract audiences or performers
  • Colour runners: double runners to hold accessories and colour filters
  • Barn door: unique rotating barn door with 4 individually rotating blades – makes even the most difficult angle possible
  • Easy setup: locally and remotely by RDM protocol – integrated display
  • DMX: 8 or 16 bits dimming and strobe function
  • Parameters: adjustable curves and response thru 4-button display with automatic light switch-off
  • Control: local, DMX, wireless DMX (option)
  • Focus reference: index for easy focus reference
  • Focus adjustment: smooth focus adjustment from rear
  • Tilt reference on hanging yoke: index for rapid repositioning

Optical

  • Very long-life lamp source: 50 000 hours – Lumen maintenance greater than 70% after 50 000 hours
  • Unique 200 mm (8 in) lens: no equivalent on the market in terms of light output and beam quality
  • Wide angle: up to 93° from edge to edge
  • Beam shaping : efficient barndoors in any focus position
  • Electronic dimmer: dimming without clipping or cut-out at low intensity levels; high quality smoothing
  • No colour shift: colour temperature remains the same when dimming

Construction

  • Made in France : fully manufactured in Robert Juliat

premises retaining complete control over all aspects of quality

  • PSU: built-in electronic flicker-free power supply for easy plug-and-play installation
  • Power connectors: neutriK® powerCON TRUE1 IN and OUT connectors for daisy chaining
  • Silent-running cooling fans: ideal for TV studios and opera houses
  • Electronic thermal management system: ensures

maximum performance of the system without any risk of overheating

  • Bodywork: strong sheet metal construction for durability
  • Captive knobs and handles: additional security when working at height or in transit
  • Safety first: front accessories safety cable attachment point
RJTLED253 ZEP2 360 LED Fresnel CW datasheet.pdf 700.44 KB
