Ethernet

Showing all 6 resultsSorted by latest

  • GigaCore 20t

    The GigaCore 20t is the ideal 10 Gigabit Ethernet AV switch for professional touring applications. The GigaCore 20t is a 10 Gigabit Ethernet switch for professional touring applications in lighting, audio and video with a frequent tear-down & built-up requirement or for any other application where ruggedized connectivity is necessary. It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network. Product Features:  Most suitable applications: Touring applications PoE: PoE++ Optional RLinkX (Link redundancy): Yes Groups (VLAN segmentation): Yes MultiLinkX (Link aggregation): Yes (With future FW upgrade) Profile manager: Yes Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage MAC address table: 16384 entries Address learning / Aging: Self learning, Auto aging Switching throughput: 112Gbps Jumbo frames: MTU up to 12000 IGMP support: Yes (V1/V2/V3) IGMP snooping: Yes, enabled by default Port sensing: Auto negotiation Auto crossover: MDI / MDIX Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
    Add to enquiry list

  • GigaCore 30i

    The GigaCore 30i 24x 1GB is an Ethernet switch, dedicated to AV integration, installation, and touring, designed to support the most advanced AV protocols. In combination with the Araneo software platform, GigaCore 30i is the ideal solution to deploy an entire AV network with one click in any fixed installation. Each GigaCore can be configured through an intuitive built-in AV Web UI but also, System-Wide management across the Luminex network is possible with the Araneo network monitoring, planning and management software. Araneo will boost your productivity and confidence in the network and reduce commissioning times significantly. GigaCore 30i is an indispensable part of any AV network where reliability and a quick and easy setup are needed. As a user, you don’t need to make choices nor tradeoffs as GigaCore handles most AV protocols for you out of the box: Pre-defined QoS/DiffServ (Quality of Service) settings, optimized IGMP (Internet Group Management Protocol) per group (VLAN) and pre-defined yet editable groups (VLANs) to easily separate your network in different applications making converged networks obvious, easy and reliable. For many applications, GigaCore 30i in the 1 Gigabit version, offers sufficient bandwidth, connectivity, and port availability with 6x independent SFP+ ports capable of data transfer speeds of up to 1 Gbps and 24 x 1Gbps copper ports. Time synchronization is crucial in many applications and with GigaCore 30i you have a hassle free PTPV2 enabled switch which will work for most major audio protocols (e.g. AES67, ST2110, Dante, Q-sys/Q-lan, …) without the need for making any complicated device settings. Entertainment installations constantly push the limits, and the need to deploy PoE powered devices is continuously increasing. GigaCore 30i provides an answer to these scenarios by offering PoE++ on all ports. Product Features: Most suitable applications: Fixed installations PoE: PoE ++ Optional (up to 1000W) RLinkX (Link redundancy): Yes Groups (VLAN segmentation): Yes MultiLinkX (Link aggregation): Yes (supported in a future firmware Profile manager: Yes Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage MAC address table: 16384 entries Address learning / Aging: Self learning, Auto aging Switching throughput: 60Gbps Jumbo frames: MTU up to 12000 IGMP support: Yes (V1/V2/V3) IGMP snooping: Yes, enabled by default Port sensing: Auto negotiation Auto crossover: MDI / MDIX Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
    Add to enquiry list

  • LumiCore

    LumiCore is a powerful network processing device for DMX lighting data streams, that can convert, route, and merge the most common ethernet lighting protocols. LumiCore is specifically designed for rack and truss mounting with a robust all metal housing, making it an ideal solution for touring, theatre, and studio AV installs. As technology is evolving towards full networked solutions (ArtNet or sACN directly to the fixtures), LumiCore provides all the flexibility of the LumiNode but then directly on the network, with up to 256 input universes merged and routed towards max 128 output universes. All of this with extreme low latency. In TV studio’s LumiCore will allow you to have control desks in the IT environment. With its split interface possibilities LumiCore allows you to isolate your lighting rig LAN from the IT infrastructure. This allows you to monitor your control infrastructure from the IT department and to centralize show storage on IT side meanwhile sharing these resources over several studios. LumiCore acts as a real bridge and can be deployed in a fully redundant way. Product Features: Mount one or two units in a 1U rack space The unit is robust and thus ideal for touring applications 64 processing engines. The M10 insert and safety ear make it easy to mount it safely on a truss
    Add to enquiry list

  • dmxLAN SwitchGBx 18

    The dmXLAN switchGBx 18 has been specifically designed for live entertainment applications where a mixture of data protocols would overload and saturate commercially-available network switches. The ELC switches forms the backbone of the network distribution system. Easily create virtual networks for specific applications, like sound, video, lighting etc. Setup fast redundant loops with fault reporting. 16 Ethernet ports with speed up to 1GB, and 2 SFP cages for fiberoptic capable of speeds up to 2.5Gbps. The ethernet ports on the front panel support PoE and a RGB LED to indicate the status and the programmed VLAN. Easy programming on local colour touch screen or remotely with our dmXLAN V4 software.   Features: Real-time backup loops Local colour touch screen and rotary encoder 8 1Gbps Network Ports with PoE (802.3af-2003 Standard) on the front with RGB LED 8 1Gbps Network Ports on the rear 2 SFP cages for Fiber Optic modules up to 2.5 Gbps Supported by dmXLAN V4 software Partition of the network into separate VLANs DANTE Compatible Can act as master for the dmXLAN nodeGBx 8
    Add to enquiry list

  • dmxLAN SwitchGBx 10

    The dmXLAN switchGBx 10 has been specifically designed for live entertainment applications where a mixture of data protocols would overload and saturate commercially-available network switches. The ELC switches forms the backbone of the network distribution system. Easily create virtual networks for specific applications, like sound, video, lighting etc. Setup fast redundant loops with fault reporting. 8 Ethernet ports with speed up to 1GB, and 2 SFP cages for fiberoptic capable of speeds up to 2.5Gbps. The ethernet ports on the front panel support PoE and a RGB LED to indicate the status and the programmed VLAN. Easy programming on local colour touch screen or remotely with our dmXLAN V4 software. Features: Real-time backup loops Local colour touch screen and rotary encoder 4 1Gbps Network Ports with PoE (802.3af-2003 Standard) on the front with RGB LED 4 1Gbps Network Ports on the rear 2 SFP cages for Fiber Optic modules up to 2.5 Gbps Supported by dmXLAN V4 software Partition of the network into separate VLANs DANTE Compatible Can act as master for the dmXLAN nodeGBx 8
    Add to enquiry list

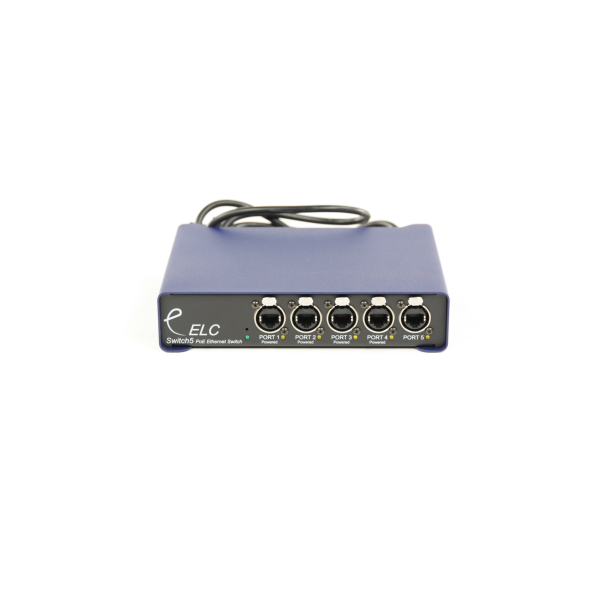

  • dmXLAN Switch 5 (100Mbit) 5 Way Ethernet Switch PO

    dmXLAN Switch 5 (100Mbit) 5 Way Ethernet Switch PO

    Add to enquiry list
