GigaCore 30i

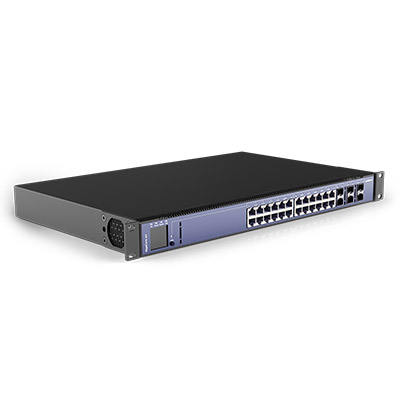

The GigaCore 30i 24x 1GB is an Ethernet switch, dedicated to AV integration, installation, and touring, designed to support the most advanced AV protocols. In combination with the Araneo software platform, GigaCore 30i is the ideal solution to deploy an entire AV network with one click in any fixed installation.
Downloads
Manuals
Datasheets
Product Video
Case Studies
Related Products
-
The LumiNode 12 is an easy to deploy and maintain ethernet/DMX processing device for converting, routing, and merging DMX/RDM data on a network. The unit is specifically designed with an all metal, robust enclosure for rack mounting, making it an ideal solution for theatre- and studio AV installs or for use at live performances. Equipped with 2x 1Gb Ethercon ports and 12x 5-pin DMX ports LumiNode 12 offers flexibility in a rugged 19” package. Each port is fully optically and galvanically isolated and can be configured as an in- or output. All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTRpl (Blacktrax) are supported and can be processed and converted in no less than 16 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality. LumiNode 12 also supports remote device management (RDM), has automatic functional and operational redundancy and recovery to reliably cope with the most challenging lighting tasks. A show recording and play-back mode lets you conveniently store lighting scenes and play these back when triggered to do so. An external contact closure is included as standard to allow for example to playback lighting scenes in case of emergency. LumiNode 12 is efficient and has a low power consumption and can be powered via PoE or via mains with a robust Neutrik powercon connector. An additional power out connector allows for daisy chaining. LumiNode 12 is easy and intuitively to operate with a built-in color display and control jog for quick access to universe numbers for example. Configuration can also be done through a built in web-based user interface. The fully documented open API facilitates full integration with any 3rd party control or management system. Luminode 12 features group (VLAN) technology, which allows you to arrive at the Node with an ISL connection, connect the node to the lighting group and use the second Ethernet port for other purposes in another group (for example video control, Dante audio, …). Read more -
LumiCore is a powerful network processing device for DMX lighting data streams, that can convert, route, and merge the most common ethernet lighting protocols. LumiCore is specifically designed for rack and truss mounting with a robust all metal housing, making it an ideal solution for touring, theatre, and studio AV installs. As technology is evolving towards full networked solutions (ArtNet or sACN directly to the fixtures), LumiCore provides all the flexibility of the LumiNode but then directly on the network, with up to 256 input universes merged and routed towards max 128 output universes. All of this with extreme low latency. In TV studio’s LumiCore will allow you to have control desks in the IT environment. With its split interface possibilities LumiCore allows you to isolate your lighting rig LAN from the IT infrastructure. This allows you to monitor your control infrastructure from the IT department and to centralize show storage on IT side meanwhile sharing these resources over several studios. LumiCore acts as a real bridge and can be deployed in a fully redundant way. Features: Mount one or two units in a 1U rack space The unit is robust and thus ideal for touring applications 64 processing engines. The M10 insert and safety ear make it easy to mount it safely on a truss Read more -
The LumiNode 8-IP is a weatherproof Ethernet/DMX processor built to withstand rough conditions. Easy to deploy and maintain, it enables the conversion, routing, and merging of DMX/RDM data on a network. Its robust, IP65-rated aluminium enclosure ensures durability, making it an ideal solution for outdoor AV installations and live performances. Designed for reliable outdoor use, it features passive cooling, a sufficient PoE budget, and resistance to extreme temperatures, rain, splashes, and dust. Equipped with 2x 1Gb etherCON TOP ports and 8 DMX ports with NC5FDXX-TOP connectors, LumiNode 8-IP offers flexibility in a weather proof package. Each port is fully optically and galvanically isolated and can be configured as an in- or output. All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTrPL (Blacktrax) are supported and can be processed and converted in no less than 12 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality. LumiNode 8-IP also supports remote device management (RDM), has automatic functional and operational redundancy and recovery to reliably cope with the most challenging lighting tasks. A show recording and play-back mode lets you conveniently store lighting scenes and play these back when triggered to do so. LumiNode 8-IP is efficient and has a low power consumption and can be powered via PoE or via a robust IP rated Neutrik powerCON True1 TOP connector. LumiNode 8-IP is easy and intuitively to operate. Configuration can be done through a built in web-based user interface or with an NFC compatible smartphone, even when the LumiNode 8-IP is not connecter to power. The fully documented open API facilitates full integration with any 3rd party control or management system. With its two 1Gigabit ethernet ports, LumiNode 8-IP offers the possibility of an advanced network interface making it possible to separate the lighting network data streams from IT related data, allowing for remote status monitoring and management without interfering with critical lighting control data streams. Luminode 8-IP with its 1Gbps etherCON TOP connectors is ready for future ethernet-only based lighting networks. Luminode 8-IP features group (VLAN) technology, which allows you to arrive at the Node with an ISL connection, connect the node to the lighting group and use the second Ethernet port for other purposes in another group (for example video control, Dante audio, …). Features: Process engines: 16 Merging engine: HTP LTP Backup Switch X-Fade Custom Softpatch: Yes Master/Limit: Proportional Limit Trigger system: Yes ReRoute: Yes Profile manager: Yes Snapshot: Yes DMX Redundancy: Yes Monitoring software: LumiNet Monitor Configuration: Built in Web server Documented Web API NFC app Read more -
LuimNode 1 is a must have tool for every lighting professional. The only Gigabit network dongle with integrated node functionality providing advanced merging and routing of lighting data, RDM communications and DMX/RDM connectivity. With its unique USB to Ethernet feature, LumiNode 1 functions as an Ethernet dongle enabling you to have a fully functional ethernet port when connected to your laptop/PC. LumiNode 1 works with any network-based lighting control software without the need to install additional drivers. 1 port node LumiNode 1 can also be used as a one-port PoE powered, stand-alone node to serve either one bi-directional, fully isolated DMX port or 2 network process engines to route protocols around, test, parameterize and take over light kits even with RDM, without consoles or other complex systems. All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTRpl (Blacktrax) are supported and can be processed and converted by the 2 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality. Industry protocols All relevant industry-standard protocols such as Art-Net, sACN, KiNET, RTTrPL (Blacktrax) are supported. Intuitive UI The built-in web UI delivers a great user experience. Process engines can be easily configured in a very intuitive workflow. Just decide what you like to do with your lighting data by choosing the mode of the process engine. Depending on the chosen merging/routing policy of the engine, the UI presents all possible input configurations. From here you just connect your input streams and your output connections. Everything can be easily stored and recalled into profiles for later usage. Advanced networking Use the full capacity of the Gigabit connectivity by sending different data in a different Group (VLAN). Setup a separate interface for IT monitoring without interfering with critical lighting data. The known Group (VLAN) technology from GigaCore switches is also available in the LumiNode product family. This allows you to freely assign a different Group (VLAN) to the different network connectors and to the node’s interfaces. ISL (Inter Switch Link) and custom trunks are available to transfer different VLANs on one ethernet connection. Play & contact closure Play allows you to record snapshots of all your output streams in a show as a cue list with fade times. This show can later be used as an input source of a process engine. The external contact closure can be configured as a trigger on the network and be used as any other trigger source to control the playback of the recorded queue list. Integration with web API LumiNode features a fully documented web API, making the unit ideal for integration and automation in installation projects. All configuration or manipulation (like recalling profiles, configuring engines, triggering play,…) can be done via web API (REST/JSON). Offering the maximum flexibility to integrate with any other hardware or software to control your infrastructure. Read more
