4 way DMX Splitter

Categories: , , , SKU: THRCON100

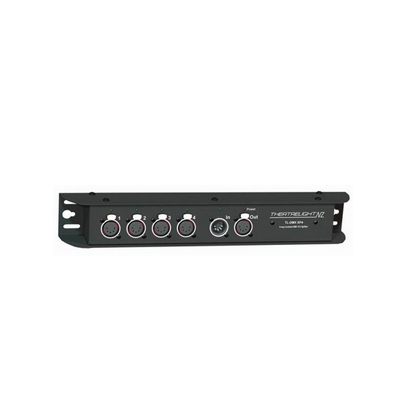

The Theatrelight 4 way DMX splitter is a stand alone, mount anywhere, 4 way optically isolated DMX splitter.



Description

The splitters present a very low load to the DMX line: up to 50 splitters can be paralleled on a single DMX feed, ideal for very large LED displays. The internal circuitry re-shapes any slow edges in the incoming DMX signal and retransmits the enhanced signal through low impedance, high current RS-485 transmitters. All input and output DMX lines are isolated from each other by 500 VAC tested insulation.

For long-term reliability in noisy power conditions, no microprocessor is used in the signal path. The version is fitted with Neutrik 5 pin XLRs for compliance to the DMX standard. The is fitted with Neutrik 3 pin XLR for installations which use 3 pin as a standard. Both the 3 pin and 5 pin version can also be supplied on request with generic brand gold plated XLRs for installations where economy is important.



Features:

  • Fully compliant with DMX-512 (1990) specification
  • Input isolated from outputs to 500VAC
  • LEDS for Power and DMX Input status
  • LEDs for DMX status at each of the 4 outputs
  • Compact mount-anywhere package
  • Components and circuitry ensure long-term reliability
  • 3 pin or 5 pin XLR versions in Neutrik or
    economic generic brands



THRCON100 4 way DMX splitter datasheet.pdf 2.54 MB
