ÆtherBox LITE

Categories: , , , , , , SKU: MUSWIR110

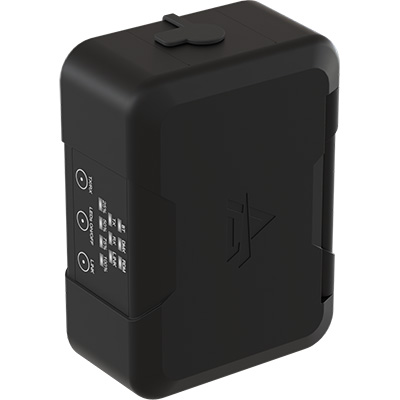

The AetherBox Lite is a versatile, single universe Wireless CRMX Transceiver, offering compatibility with both Lumen Radio CRMX and Wireless DMX G3 and G4S protocols.

Send an enquiry

Description

This compact unit provides flexible power and signal processing options via chassis connectors or terminal blocks. Its design allows for track mounting, enabling the streaming of signals on tracks equipped with a data bus option.

The AetherBox Lite is an effective solution for small and medium-sized live events or installations, delivering reliable wireless control in various settings.

Product Features

  • Single Univers Wireless CRMX Transceiver unit
  • Power IN and DMX In/Out through chassis mount connectors and terminal blocks
  • Either LumenRadio CRMX and Wireless DMX G3 and G4S transmission option



BODY

  • Hardware on-board: see available accessories
  • Body: sturdy policarbonate body
  • Body colour: black
CONTROL

  • Protocols: DMX512, RDM, CRMX + WDMX, Bluetooth
  • Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
  • RDM: RDM for remote monitoring and settings
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)

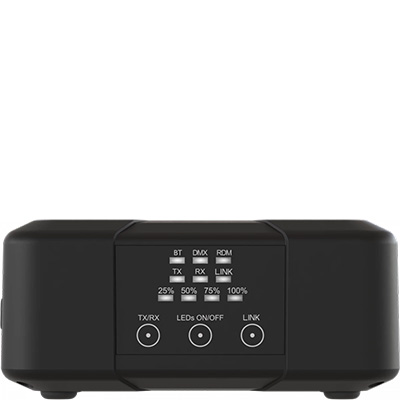

  • Other: 3 control buttons and status LEDs on-board
  • Other: transmission range up to 100 meters in open field
ELECTRICAL

  • Mains power supply: 100-240V – 50/60Hz
  • Max power consumption: 5W
  • Power factor: > 0,95
PHYSICAL

  • Operating Temperature: -10° ~ +45°
  • IP rating: 20
  • Suspension and fixing: track-adapter option (track not included), for fixing in suspension

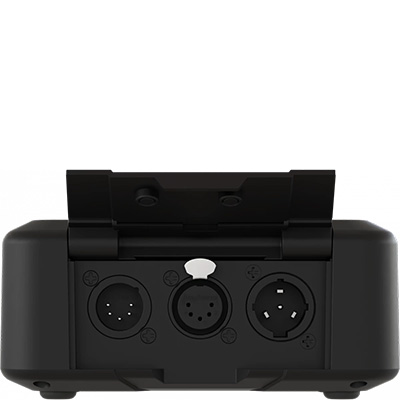

  • Signal connection: screw terminal block, Amphenol XLR 5p IN/OUT connectors
  • Power connection: screw terminal block, Seetronic powerCON TRUE IN
  • Dimensions (WxHxD): 140x60x100mm / 5.51”x2.36”x3.94”
  • Weight: 0.4kg / 0.88lbs
CERTIFICATIONS / APPROVALS

  • Certifications / Approvals: CE, RCM, FCC, cTUVus

BOX CONTENT

  • 1 x AETHERBOXLITE


MUSWIR110 Aetherbox Lite Datasheet.pdf    236.63 KB
MUSWIR110 Aetherbox Lite Manual.pdf    1.46 MB
