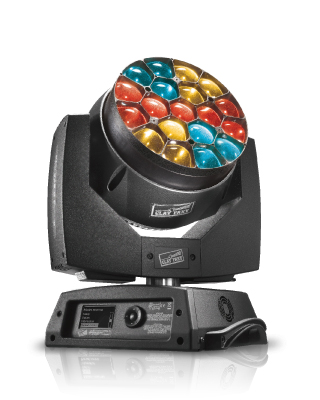

ALEDA B-EYE K10 Easy

A.LEDA B-EYE K10 Easy is a versatile LED-based moving light that can be used in many diverse ways, even within the same project.



Description

It is an excellent quality wash light, able to wash surfaces with colors at any distance, making the most of its light source. It is at least 20% brighter than any LED-wash with the same rated power, thanks to its special optical unit with a truly amazing lumen/watt ratio, designed and built by Clay Paky. The zoom ranges from 4° to 60° and it is therefore suitable both for environments with low ceilings (small theatres and TV studios, for example), where large angles are extremely useful, and for shows in arenas or large environments, where a tight zoom is perfect.

  • Source Type: RGBW LEDs
  • LED Nominal Wattage: 15W
  • Number of LEDs: 19
  • Versatile, three operating modes: wash, beam, FX effects
  • Unique optical system, featuring unmatched zoom range (4°-60°) and even light spread
  • Individual LED control for each parameter
  • Invisible front grid
  • Beam edge softening control (in wash mode)
  • Exclusive parallel beam consisting of an array of individually controllable micro-beams
  • Enhanced electronic engine for dynamic beam pattern design, with digital accuracy and repeatability
  • Art-Net / RDM
  • Rotating front lens for countless vortex effects, for aerial or “kaleidoscopic” projection use
  • White CT Emulation 2500-8000K
  • RGB auto-tuning to lamp CT Emulation
  • Tungsten Lamp Emulation

POWER SUPPLIES
100-240V 50/60Hz

INPUT POWER
450VA

LIGHT SOURCE
19 Osram Ostar RGBW LEDs
LED Nominal Wattage: 15W
LED Average Life: 50,000 h

OPTICS
4°-60° Electronic Zoom Range

EFFECTS SECTION
Three operating modes: wash, beam, FX (Kaleido effects)
Bi-directional Rotating Front Lens
Digital Wash-Beam Framing effect
Beam edge softening control (in Wash mode)
Pixel Patterning Macros with enhanced control
0-100% linear electronic dimmer
Adjustable speed stop/strobe effect, with instantaneous blackout
Dedicated channel for color temperature setting
White CT Emulation 2500-8000K
RGBW auto-tuning to lamp CT Emulation
Tungsten Lamp Emulation
Slow Strobe: 1 flash/sec
Fast Strobe: 25 flash/sec

CONTROL AND PROGRAMMING
Control channels: 21 in standard mode
Protocol signal: USITT DMX 512
Art-Net / RDM
Display: Graphic LCD backlit b/w Display
Pan/Tilt Resolution: 16 bit
Dimmer Resolution: 16 bit
Movement control: vectorial
DMX signal connection: 5 pole XLR input and output
Software upload through DMX input

BODY
Aluminium structure with die-cast plastic cover
Two side handles for transportation
PAN lock for transport and maintenance

MOVING BODY
Movement by means of two stepper motors, controlled by microprocessor
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit
Travel:
– PAN = 540°
– TILT = 210°

ELECTRONICS
Long-life auto-charging buffer battery
Preset color and graphic effect macros
Function reset controllable from a central control unit
Menu-driven internal self-test function
Display: backlit black-and-white graphic LCD display
Electronic check-up of every single parameter with error alarm
DMX level monitoring on each channel
Automatic internal data transmission error diagnostics
Firmware upgrade even when the unit is not connected to the power supply
Firmware transfer from one light to another

SAFETY DEVICES
Automatic power safety derating in case of overheat of the LED board
Forced ventilation

WORKING POSITION
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE MARKING
In conformity with the European Directives:
• 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU – Electromagnetic Compatibility (EMC)
• 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC – EcoDesign requirements for Energy-related Products (ErP)

WEIGHT
15 Kg (33.1 lbs)
