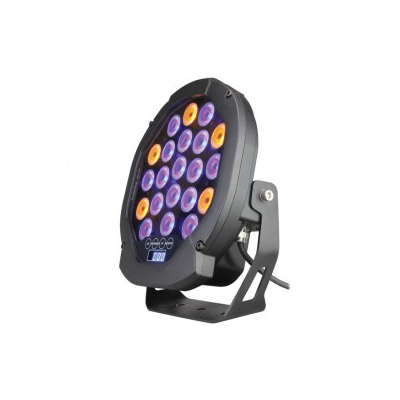

Archiled 200 RGBW+A

Categories: , , SKU: STULED041 Tag:

The ARCHILED 200 RGBWA is the last version of the Archiled range.



Description

It’s even more compact (only 100mm depth), elegant, highly reliable and even more robust from a mechanical point of view. IP 67 rating protection.

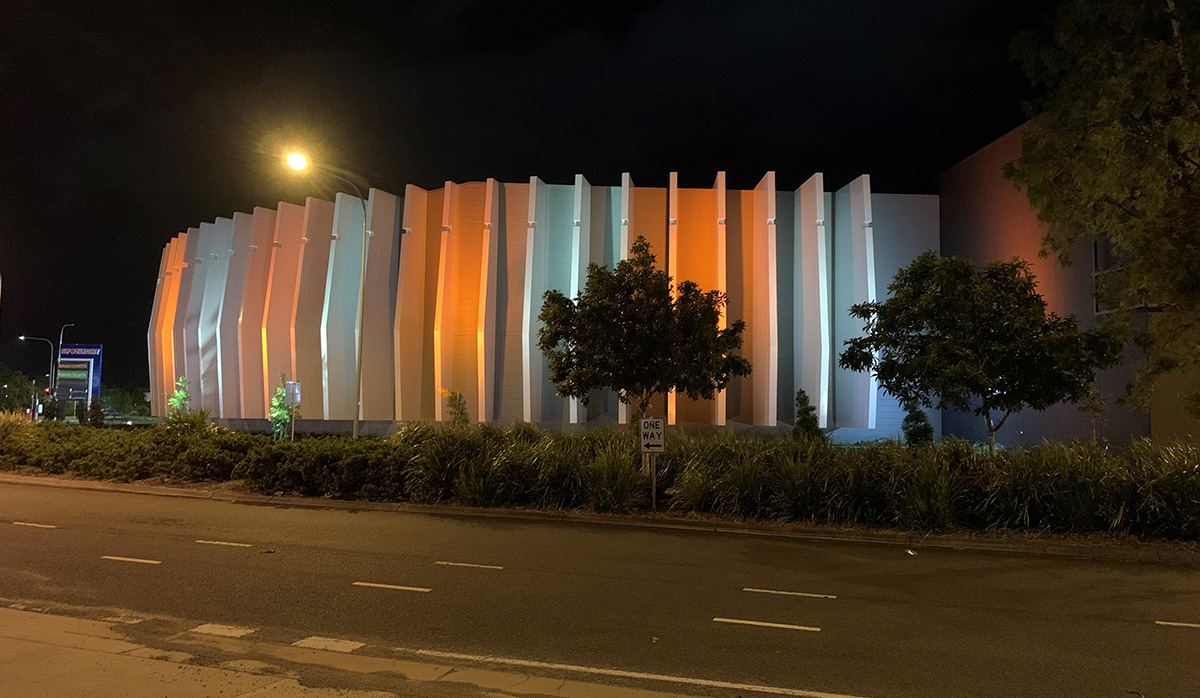

With its 16 powerful RGBW LEDs + 10 AMBER LEDs, is particularly adapt to be used to light up with deep beam of light, several final applications in the architectural field specifically for hotels and hospitality, retail and commercial malls, parks and landscapes, historical and cultural monuments.  Touch control panel for easy configuration of the fixture.



• SOURCE
n. 16 RGBW LEDs + n. 10 AMBER LEDs
Total lm: R 1300, G 1800, B 380, W 2500, A 1300
85W total light power
• OPTIC
medium beam (38mm lenses)
On request: narrow and wide beam (38mm lenses)
• TILT
  Manual 160°
• CONTROL
  Standard interface: RS-485; opto-couplet bi-directional
Protocol: USITT DMX 512
> Integral Wireless DMX control (receiver) is available as an option (art. WI PCB-REC).
• CONNECTION
  Main Power: 3×1 cable 1,5mt.
DMX INPUT: 4 Pin Male IP67 connector (cable 25cm.)
DMX OUTPUT: 4 Pin Female IP67 connector (cable 25cm.)
• SETUP AND CONFIGURATION
  Control panel with touch technology and led display with flip function
Dedicated DMX channel for white balance
DMX or Auto mode with Master-Slave function
Intelligent temperature control
Flicker-free function
Smooth dimming function
Halogen simulation
CYM simulation
Remote configuration by DRS Setup device
• IP 67 RATING PROTECTION
• POWER SUPPLY
  Voltage range: 100-240VAC
Frequency range: 47-63Hz
Active Power Factor: PF>0.94
Power: 90W
• DMX CHANNELS
  – 10 ch mode
– 7 ch mode
– 6 ch mode
– 5 ch mode
• PHYSICAL
  WxDxH: 270x100x303 mm
Weight: 4,9 kg.
