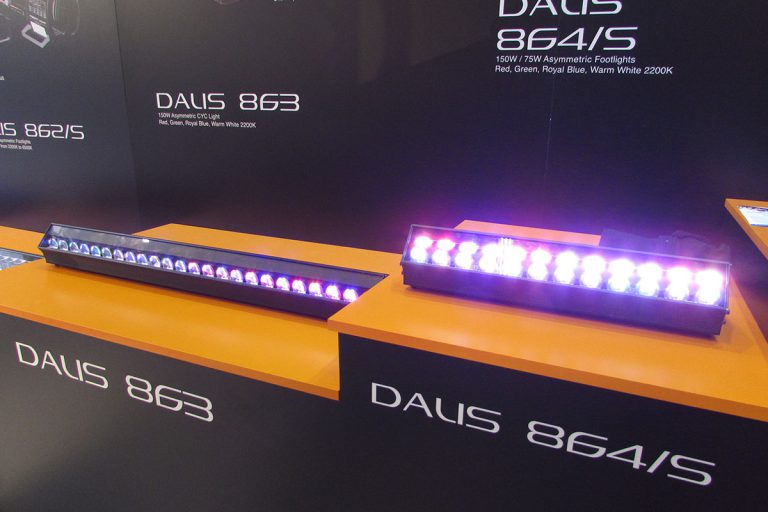

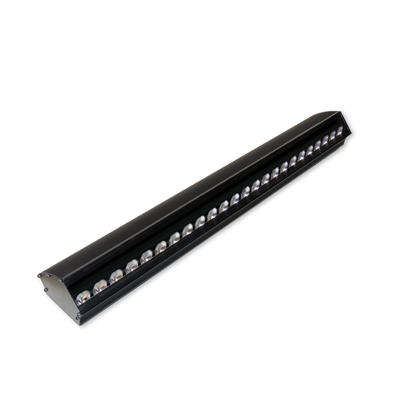

Dalis 863 Access RGBW

Dalis 863 Access is a 150W LED batten designed to give small-sized venues or those with smaller budgets the first access to Dalis technology



Sharing all the technology as the original Dalis 860 Cyclorama fixture, Dalis Access 863 features a four-colour mixing system and 24 of the patented Dalis asymmetrical micro-reflectors, but otherwise all the functionality and quality of the original.The batten delivers powerful, smooth coverage and a fair variety of pastel and saturated colours. It incorporates four coloured LED emitters (red, green, royal blue and warm white 2200K). Equipped with an advanced fanless cooling system, Dalis Access is equally perfect for cyclorama or footlight applications.


  • 16-bit control of each colour: precision dimming on every colour
  • Linear dimming curve: no colour fading during dimming
  •  Adjustable response time: choice of fast or slow dimming for tungsten-like simulation – adjustment by DMX protocol
  • Control of up to 4 groups: colour variations with smooth transition by separating the unit into 2 or 4 sections
  • Strobe: independent control of speed and duration
  • Universal data control: compatible with DMX, RDM, Art-Net, sACN protocols
  •  Easy setup: locally and remotely by RDM protocol – integrated display
  • Angular sensor: tilt angle displayed for perfect alignment of all the units
  • Auto Flip Mode: automatic flip over of the group sections depending on the positions of the unit for easy programming
  • Dimming parameters: choice of square or linear dimming curves
  • Vertical mounting possible: allows easy creation of vertical colour fades (horizontal lines) – for sunrise / sunset creations
  • Adjustable feet: can be installed directly on the floor; simple retractable foot mechanism to aid floor focusing
