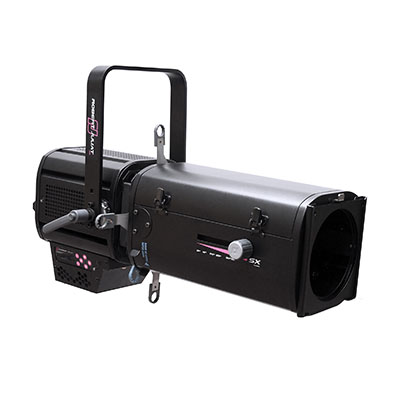

Sully 654SX 4C 16/35

Sully 4C is a series of variable zoom profile featuring a 4-colour LED source and integrating an innovative software platform named RJ Colour.


With advanced setting and control modes, these profile spots deliver perfect whites and high quality saturated and pastel colours. Sully 4C is fully manufactured in France at Robert Juliat premises. Each
LED engine is factory-calibrated to ensure colour consistency from one profile to another. In addition, the Sully 4C LED retrofit compartment is an ideal economic and technological solution to convert 600SX tungsten fixtures.

Product Features:

• Light intensity: 8 or 16 bit dimming and strobe function
• Colour control: CIE XY, Hue saturation, RGB (with choice of the colour space – Native / sRGB / REC.709 / REC.2020 / ProPhoto) or RAW modes
• Calibrated white sources: 3 white presets reproducing tungsten 3000 K or 3200 K lamps, or discharge 6500 K lamps
• Colour Temperature adjustment (CCT): white from 1700 to 10000 Kelvin with Delta UV control (+/- Green – Magenta)
• Colour mixing optimization: choice of High Quality or High Brightness mode
• Colour filter simulation: 300 colour filters included with transmission / saturation adjustment – Fade time and type adjustment between 2 colour filters for adjustable transition
• DimShift function: when dimming the light, the colours follow the Planck curve (tungsten redshift emulation) – Available on all sources (white presets, any CCT value) and all colour filters
• 1 parameter DMX mode: filter or colour selection through local display and dimming control by DMX (8 or 16 bits)
• Adjustable response time: choice of fast or slow dimming for tungsten-like simulation – adjustment by DMX – 3 modes available: tungsten, linear and linear with flash detection
• Multi-function double gate: simultaneous use of gobos and iris. Sharp focus of both gobo and shutter
• Shutter gate: up to 8 shutters. Remove shutters for easy maintenance or tuck fully inside gate for secure transport
• User-friendly shutter-lock system: secures shutters’ setting in any circumstances (locking efficient up to 4 shutters)
• Lens tube lock feature: secures rotating lens tube against unwanted movement
• 90° rotating lens tube / gate / front accessories holder: rotation of the projected image is always possible while the lamp remains vertical – no need to move the yoke
• Internal glass filter holder: long term use of durable coloured, dichroic and textured glass or gels
• PWM adjustment: choice of different PWM dimming frequencies
• Local setup: dMX address and mode, dimming curve and response time through 4-button display with automatic light switch-off
• Dimming parameters: choice of square, linear or tungsten dimming curves
