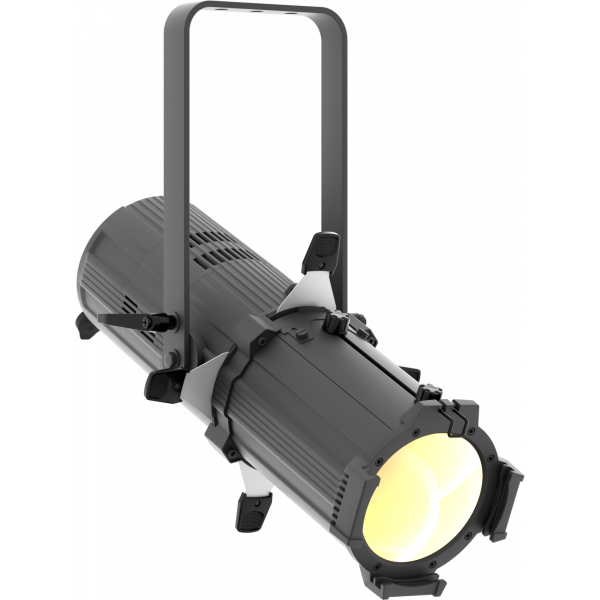

Ecl Profile JZIP

LIGHT SOURCE

• Source: 160W Warm White LED
• CT: (TU) 3.100 K – (DY) 5.500K
• CRI: >90
• Luminous flux: (TU – 50°) 5’274 lm – (TU – 25°) 5’770 lm; (TU – 30°) 4’200 lm – (TU – 15°) 5’012 lm – (DY – 50°) 5’390 lm – (DY – 25°) 4’911 lm; (DY – 30°) 3’844 lm – (DY – 15°) 4’450lm
• Lux: (TU – 50°) 2’040 lx – (TU – 25°) 5’160 lx; (TU – 30°) 3’710 lx – (TU – 15°) 12’900 lx – (DY – 50°) 1’750 lx – (DY – 25°) 4’530 lx; (DY – 30°) 3’000 lx – (DY – 15°) 11’200lx @3 m
• Lux: (TU – 50°) 734 lx – (TU – 25°) 1’857 lx; (TU – 30°) 1’336 lx – (TU – 15°) 4’644 – (DY – 50°) 630 lx – (DY – 25°) 1’630 lx; (DY – 30°) 1’080 lx – (DY – 15°) 4’032lx @5 m
• Source life expectancy: > 50.000 h
• Other: TLCI: >91 – TM30-15 RE/RF: 97/88

OPTICS

• Beam angle: (optional) manual zoom lens 15°-30° or (optional) manual zoom lens 25°-50°
• Lens diameter: 87mm / 3.43”
• Lens type: high-quality glass lens optics
• Focus: manual

COLOUR SYSTEM

• Macros: several pre-build macros with adjustable speed

DYNAMIC EFFECTS

• Gobo size: M, outer: 66 mm – image: 45 mm – thickness: 1,1 mm
• Static colour mode: selection of static dimmer
• Manual colour mode: manual adjustment of dimmer and strobe
• Auto mode: built-in programs with execution speed adjustment

BODY

• Hardware on-board: on board mechanics for rigging to the ceiling
• Body: sturdy die-cast aluminium body conceived for long-time durability
• Body colour: black

CONTROL

• Protocols: DMX512, W-DMX
• DMX channels: 1 / 3channel
• W-DMX: included, wireless solution receiver
• RDM: RDM ready for fixture remote monitor and settings
• Display: black OLED high resolution display
• Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
• Master/Slave: for synchronized operation of more units linked in a chain
• Other: 16bit control of dimmer

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 different dimming curves available
• Strobe / shutter: 1 – 30 Hz, electronic
• Operating temperature: -20° ~ +45°
• Flicker: flicker free operation
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Power consumption: 136 W
• Power supply: 100-240 V – 50/60 Hz
• Power consumption (at 230 V): 136W
• Power consumption (at 120 V): 138,6W
• Power factor: pF 0,98 @120 V – pF 0,97 @230 V

PHYSICAL

• Cooling: forced air with low noise fan
• Sospension and fixing: hanging bracket suitable for safe hanging and positioning
• Signal connection: Seetronic XLR 5p IN/OUT connectors
• Power connection: Seetronic powerCON waterproof IN/OUT connectors
• IP rating: 65 for temporary outdoor application, not for fixed installation
• Dimensions (WxHxD): 275x440x275mm / 10.83”x17.32”x10.83”
• Weight: 7,9kg / 17.42lbs
