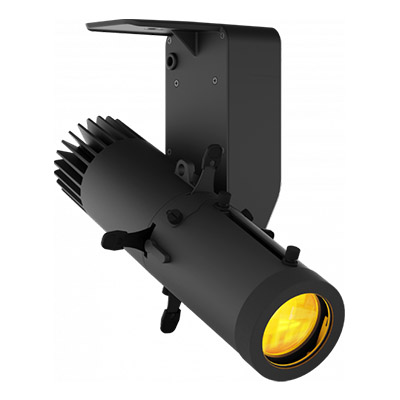

EclDisplay DATFC Black

EclDisplay 25W 4000K data Control White is a revolutionary and flexible LED spotlight designed for galleries, commercials and any public venue where an advanced but classy fixture, with several control options, sources and optic versions available to precisely meet any application.

Description

The EclDisplay DATFC can be set and addressed through RDM, featuring a broad set of on-board input control options: DMX, DALI Type 8, local knob dimming control. The EclDisplay DATFC includes a high-efficiency 40W RGB + Warm White LED capable of delivering both a Full Colour spectrum and also tunable White, and it is completed with a wide selection of optional zoomable profile or wash lenses, and other optical accessories like louvres and snoots, making it a truly a multi-purpose fixture.

Also available in the following versions:

Code: MUSDIS243 EclDisplay 40W RGB + WW  Data control white

Code: MUSDIS240 EclDisplay 40W RGB + WW Universal control black

Code: MUSDIS241 EclDisplay 40W RGB + WW Universal control white

Code: MUSIDIS244 EclDisplay 40W RGB + WW  Constant control black

Code: MUSDIS245 EclDisplay 40W RGB + WW  Constant control white



Features:

  • Universal control through RDM, DMX, DALI Type 8 and local knob dimming
  • 40W RGB + Warm White LED capable to deliver both a Full Colour generation and also Tunable White
  • Multiple lens options: zoomable profile or wash optics (15-30, 25-50, 20-40)

LIGHT SOURCE
  • Source:  40W RGB + Warm White LED
  • Luminous flux: (profile – 20°) 366 lm – (profile – 40°) 325 lm; (wash 2550 – min) 308 lm – (wash 2550 – max) 407 lm; (wash 1530 – min) 309 lm – (wash 1530 – max) 343lm @full
  • Lux: (profile – 20°) 194 lx – (profile – 40°) 42 lx; (wash 2550 – min) 49 lx – (wash 2550 – max) 20 lx; (wash 1530 – min) 119 lx – (wash 1530 – max) 58lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

  • Zoom: (wash lens – optional) 15° ~ 30° or 25° ~ 50° – (profile lens – optional) 20° ~ 40°
  • Other: 360° lens rotation – shutter blades lockable – optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens) shutter blades lockable
  • Other: (profile lens – optional) manual rotating gobo holder size E, outer: 37 mm – image: 23 mm – thickness: max 3 mm

COLOUR SYSTEM

  • Colour mixing: RGB + Warm White
  • CCT: CCT control through dedicated DMX channel
  • Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

  • Control Resolution: 16bit dimmer
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment

BODY

  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9010
  • Other: cable not included – Cable diameter range: 6 – 10 mm

CONTROL

  • Protocols: Local Knob, DMX, DALI Type8, RDM
  • DMX channels: 5 / 6 / 15channel
  • RDM: RDM for remote monitoring and settings
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V – 50/60Hz
  • Max power consumption: 48W
  • Power factor: > 0,95

PHYSICAL

  • Operating Temperature: -10° ~ +45°
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: screw terminal blocks
  • Power connection: screw terminal blocks
  • Dimensions (WxHxD): 141X200x150mm / 5.55”x5.91”
  • Weight: 1,4kg / 3.09lbs


MUSDIS242 EclDisplay 40W RGB WW data control black datasheet.pdf    3.31 MB
