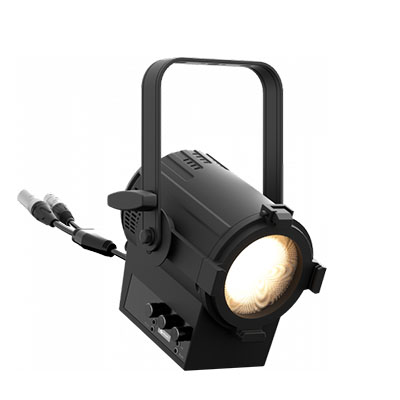

EclMiniFresnel VW

The EclMiniFresnel VW is an ultra-compact LED Fresnel lamp, designed as a replacement for a 300W fixture, with a bright and high-quality variable-white light, from 2,700K to 5,600K, using a 60W LED source.

Description

This is the perfect luminaire for those applications requiring high-quality white rendering, such as in TV studios, galleries, and virtual productions, with high CRI (>96), TLCI (>96), TM-30 and R9.
The EclMiniFresnel VW has a manual zoom range from 21° to 83°, with precise focusing, and barndoors (included).
This fixture has an intuitive user interface with rotatory knobs. It also has stand-alone settings, PowerCon True in & through connections and XLR in & through, offering an incredible user experience and easy setup.

Product Features:

  • Linear white CCT, from 2,700K to 5,600K
  • 60W Variable White LED with CRI >96; TLCI >96; high TM-30 and R9
  • Barndoor and filter frame included
LIGHT SOURCE

  • Source: 60W Variable White LED
  • CCT: 2.700 K – 5.600K
  • Luminous flux: (21°) 877 lm – (83°) 2’320lm @full
  • Lux: (21°) 630 lx – (83°) 238lx @3 m
  • CRI: 96 @WW; 95 @CW; 95 @full
  • R9: 91 @WW; 88 @CW; 86 @full
  • TLCI: 95 @WW; 98 @CW; 97 @full
  • TM30 Rf: > 94 @WW; >93 @CW; > 94 @full
  • TM30 Rg: < 103 @WW; < 104 @CW; < 104 @full
  • Source life expectancy: > 50.000 h
OPTICS

  • Zoom: 21° – 83° manual
  • Lens diameter: 3.93” – 100mm / 0.15”
  • Lens type: fresnel zoom lens
COLOUR SYSTEM

  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K – 5.600K
  • Colour wheel: built-in white presets
DYNAMIC EFFECTS

  • Control Resolution: 16-bit dimmer
  • Static mode: selection of static dimmer and color temperature
  • Manual mode: manual adjustment of intensity and CT from knob
  • Auto mode: built-in programs with execution speed adjustment
BODY

  • Hardware on-board: filter frame, 4 doors barndoor, spigot
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004 or RAL 9003
CONTROL

  • Protocols: DMX512, RDM
  • Stand Alone: 3 rotatory knobs
  • DMX channels: 1 / 2 / 4 / 5 / 11channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • Operating temperature: -20° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL

  • Mains power supply: 100-240V – 50/60Hz
  • Max power consumption: 55W
  • Power factor: > 0,52
PHYSICAL

  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 191x281x203mm / 7.52”x11.06”x7.99”
  • Weight: 2,5kg / 5.51lbs
CERTIFICATIONS / APPROVALS

  • Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

  • 1 x MINIECLFRVW
  • 1 x MINIECLFRBD
  • 1 x MINIECLFRTPG
  • User Manual
