EclPanel TWC

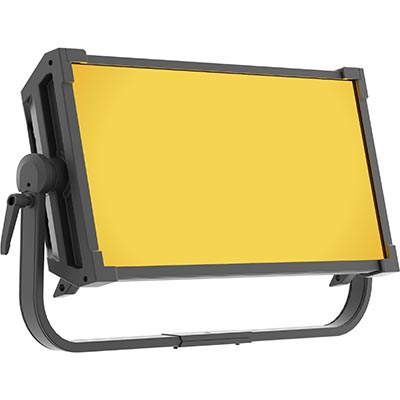

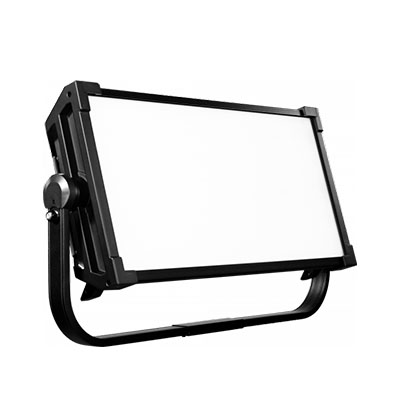

The PROLIGHTS ECLIPSE Panel Tunable White & Colour is a LED soft panel / soft light which provides a beautiful, wide source of soft and precise colours.


In addition to this the PROLIGHTS ECLIPSE PANEL TWC comes with a full range white reproduction from daylight through to Tungsten tones, reaching a superior light quality with High CRI, TLCI and TM-30. The ECLIPSE PANEL allows for quick and accurate adjustment of light through 3 local knobs with two fully featured modes: CCT with +/- green and magenta shift, and HSI for total control of hue, saturation and intensity. The unit can also be controlled on a per section basis, to allow for the reproduction of onboard customisable effects or to be run through the lighting desk. Both methods provide eye-candy, with the appealing and modern front looks and cinematic special effects. The unit is packaged with an onboard driver and built-in power supply and being lightweight, the ECLIPSE PANEL offers easy rigging and cabling making it the perfect lighting tool for every location.



• 740W RGB + Warm White LED source
• CRI > 95; R9 > 97; TLCI > 93
• 4 section pixel control and built-in lighting effects for Cinema applications
• Silent operation with multiple fans mode
• Battery connection (4pXLR 24-36V): compatible with industry standard external batteries (optional)


Accessories available for the Eclipse Panel are:

60 degree egg crate (MUSECL211)

30 degree egg crate (MUSECL210)

8 chamber egg crate (MUSECL215)

Find out more of the PROLIGHTS EclPanel range here


  • Source: 740W RGB + Warm White
  • Luminous flux: 34’236lm @4.000 K with MD filter
  • Lux: 404lx @5 m full
  • CRI: 94,6 @ 3200K; 95,5 @ 5600K
  • R9: 97 @ 3200K; 92 @ 5600K
  • TLCI: 92 @ 5600K
  • TM30 Rf: 92 @ 3200K; 89,5 @ 5600K
  • TM30 Rg: 103 @ 3200K; 102,4 @ 5600K
  • Source life expectancy: > 50.000 h



  • Beam angle: 102°
  • Field angle: 159°
  • Lens type: Medium Density diffusion panel (interchangeable)
  • Additional optics: see available accessories



  • Colour mixing: RGB + WW
  • CTC: CTC control through independent DMX channel, + / – green and magenta correction and amber shift activation by DMX
  • White presets: 2.800 K – 10.000K
  • Colour wheel: virtual colour wheel with presets
  • Macros: built-in white presets



  • Control Resolution: 16bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours



  • Body: sturdy die-cast aluminium body
  • Body colour: black



  • Protocols: DMX512, RDM, W-DMX, rotatory knob

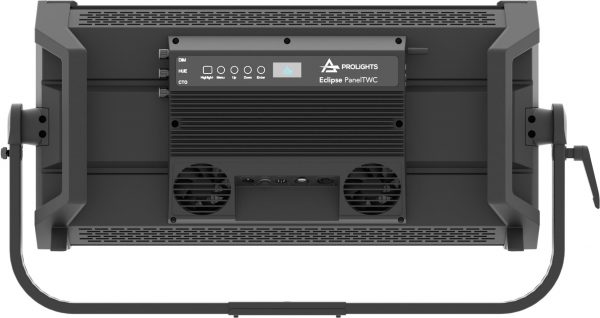

  • Stand Alone: selectable mode through 3 rotatory knobs
  • Pixel control: 8 section control
  • W-DMX: included, wireless solution receiver
  • RDM: RDM ready for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included



  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 36.000 Hz



  • Mains power supply: 100-240 V – 50/60 Hz
  • Low Voltage DC mains: 24-36V
  • Max power consumption: 440W
  • Power factor: >0,94



  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning

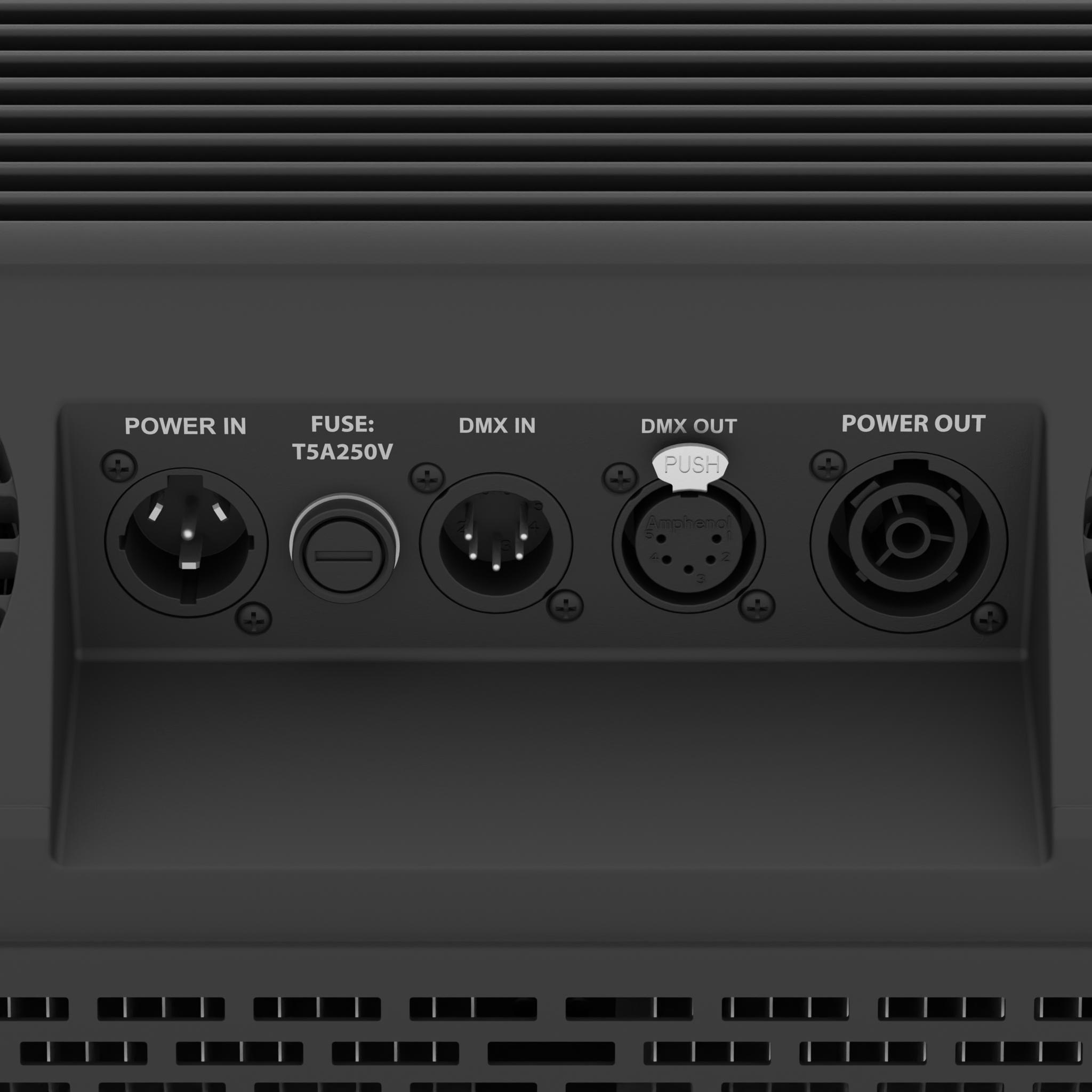

  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Low Voltage DC connector: XLR 4p
  • IP rating: 20
  • Dimensions (WxHxD): 819x431x144 mm / (with PO system) 836x431x144mm / 32.24”x16.97”x5.67”
  • Weight: 15,3/()17,1kg / 33.73lbs
