Exterior PixLine 20 RGB

The Exterior PixLine 20 is a linear LED video fixture for media facades and creative installations.


The Exterior PixLine 20 can be combined with a wide variety of lenses and diffusers for the right look for every application. The Exterior PixLine 20 is driven by the Martin P3 System Controller family for easy setup and video display, and it is also backwards compatible with DMX for smaller setups. The fixtures can be fully customized in terms of length and colour to match every installation requirement, while the power source is hidden.

  • Wide range of pixel pitch, lens and diffuser options for flexibility of look
  •  Fully outdoor-rated and customizable in terms of length and colour
  •  Easy setup and cabling for clean installation
  • 20 mm pixel pitch
  • 125 cd per meter calibrated
  • 80 lumen per foot calibrated
  • High-quality 16-bit per colour image processing technology
  • Pixel-level brightness and colour calibration for optimal image quality
  • P3/DMX controllable (automatic protocol detection)
  • Intuitive mapping and addressing via P3 System Controller
  • Combined power/data input (single cable for power and data input)
  • Supported by integrated power and data processor (P3 PowerPort 1500 or P3 PowerPort 1000 IP) and simple cabling system
  • Available in standard length of 1280 mm and 320 mm (customized lengths also available)

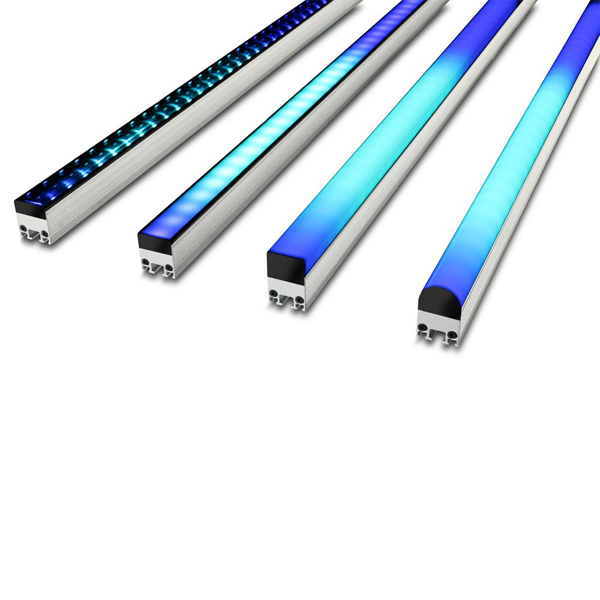

The exterior PixLine 20 comes in  310mm and 1270mm lengths with four different diffusers:

MAREXT220-Square diffuser 310mm

MAREXT221-Round diffuser 310mm

MAREXT222-diffuser 310mm

MAREXT223-Clear diffuser 310mm

MAREXT230-Square diffuser 1270mm

MAREXT231-Round diffuser 1270mm

MAREXT232-diffuser 1270mm

MAREXT233-Clear diffuser  1270mm
