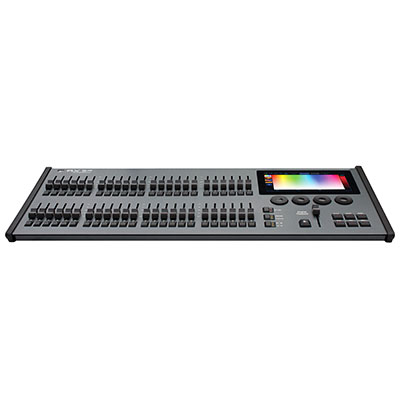

FLX S48

Double the power of the FLXS24 with intuitive and hands-on control of up to 96 fixtures, and a touch monitor output to provide an overview of the show.

Description

FLX S consoles are easy to learn and simple to use – delivering all the features you need at a price you can afford. FLX S48 has double the power of the FLX S24 with intuitive and hands-on control of up to 96 fixtures, and
a touch monitor output to provide quick access to palettes and an overview of the show. Quickly and accurately control colour changing lights using the multi-touch colour & image picker, the encoder wheels or by selecting colours contained within a “mood” using Mood Boards by LEE Filters, and quickly record it straight onto any fader or one of the 96 instant-access colour palettes to recall later. Moving lights can be controlled using the multi-touch pan/tilt grid, the encoder wheels or with automatic effects like “Figure 8”, “Rainbow” and “Fly-In”.

From design to manufacture, FLX S24 and FLX S48 have been developed to work in a wide range of applications, with specific considerations for education, houses of worship, fringe theatre, community venues, corporate
events, concerts, rental, fashion, festivals, holiday parks, cruise ships, TV and many more…

Built in tools such as Auto Palettes and RigSync do all the prep work, getting you ready to operate quicker than ever before. Programming time is reduced with a simple three-step programming method for moving lights,
colour changing and conventionals – what you want, how you want it, where you want it. And for all those really important features you need over and over again – you always have direct instant access via the dedicated Z
button.



Product Features:

Control up to 96 fixtures – including LED, Moving Lights and conventional
• 48 multi-function faders
• 97 playbacks (each with submaster & full cue stack functionality)
• 96 groups, 5 x 96 palettes (Colour, Beam, Shape, Position, Effect)
• Full control of multicell fixtures
• Full manual or automated control of move on dark

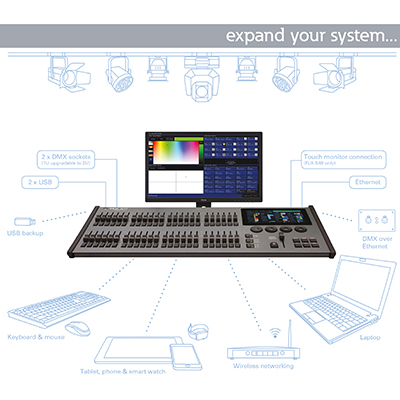

• DVI-D output for optional external touch screen (1024 x 768)
• Multi-touch interfaces for Colour & Moving Lights
• Dedicated GO button & Playback Fader for theatrical control
• Hands-on intuitive control via 4 encoder wheels
• Free mobile apps for wireless control of your ZerOS console on iOS and Android devices
• Multi-lingual step-by-step touch screen guidance
• Art-Net 4, sACN and CITP
• 7” multi-touch screen
• Automatic Groups, Palettes, Effects and Macros
• Colour mixing, picking & image picker
• Mood Boards by LEE Filters
• Additive, subtractive and HSV control
• Store single or multiple cues on each of the playbacks
• Extensive fixture library
• RDM compatibility
• Showfile compatibility with other ZerOS consoles
• Quiet, dust free, fanless operation
• 512 Channels upgradable to 1024 Channels
• Channels patchable across 64 Universes
• Two XLR Outputs (1 x 5 pin + 1 x 3 pin)
• 3 year warranty
• CE compliant to all relevant standards
• Designed and manufactured to ISO9001 standard



EROFLX100 FLX S24 Datasheet.pdf    492.06 KB
EROFLX110 FLX 48 datasheet.pdf    552.44 KB
