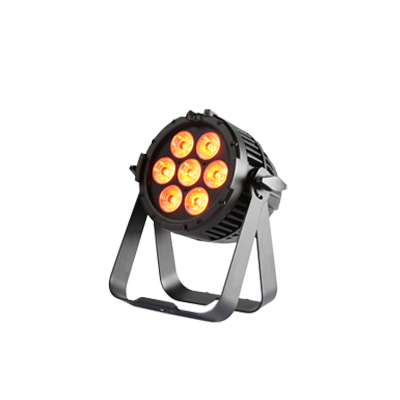

FusionPAR Q VII

Outdoor-rated Quad-colour (4-in-one) RGBW LED washlight designed for professional touring and production with W-DMX receiver onboard.

SEND ENQUIRY

Description

LED FusionPAR Q VII features:

  • 7 x 10W RGBW (4-in-1) LEDs
  • Perfect colour consistency in a compact package with extremely tight beam output
  • Selectable PWM frequencies for flicker-free output and worry-free video
  • Double mounting bracket allows the fixture to be flown or floor-mounted
  • Four selectable dimming curve modes (off, fast, medium, slow)
  • Patented structural design delivers superior passive cooling
  • Ultra-linear dimming technology for flawless colour mixing
  • Advanced colour management with an adjustable white balance
  • Silent operation suitable for broadcast environments
  • Indestructible diecast alloy body
  • Onboard colour presets and macros
  • High contrast OLED menu display
  • Password protected menu lock
  • Seetronic IP65 5-pin In/Out
  • DMX and W-DMX control
Photometrics
Lamp Source 7x10W RGBW 4-in-1 LED
Beam Angle 22°
Field Angle 37°
Output 504 LUX @ 5 meters
Key Features
Colour Mixing RGBW
Strobe 0-30 Hz
Dimming 4 dimming curve modes
Control
Protocol DMX
DMX Channels 4 / 6 / 11 /
Display OLED function menu with 4 touch buttons
Power
Mains 100V-240VAC,  50/60 Hz
Consumption 64W
Power connections Seetronic IP65 In/Out
Data connections Seetronic IP65 5-pin In/Out
Housing
Material Aluminium
Finish Matte black



IP rating IP65



Thermal
Cooling Passive
Physical
Dimensions 240 x 154 x 286 mm
Weight 3.6 KG
2 LEDPAR075-FusionPar-Q-VII-datasheet.pdf 716.73 KB
3 FusionPar-QVII-7QX-IP-user-manual.pdf 2.8 MB
