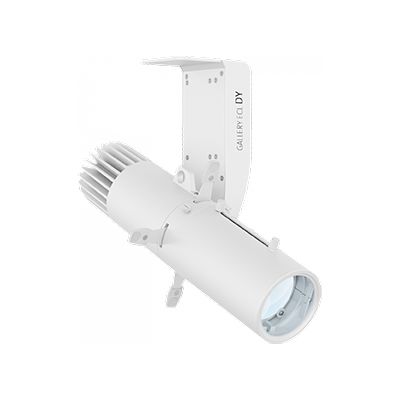

Gallery Eclipse 5100K

Gallery Eclipse is a compact LED ellipsoidal luminaire using a 35 W High Output LED engine available in different CTC’s with high CRI.



Description

The elegant design aims his use for galleries, products and shop windows lighting. Featuring a beautiful and controllable beam offers also a built in Wireless DMX, manual Zoom from 16° to 36°, high-quality glass lens and manual shaping blades, Gallery Eclipse is a versatile luminaire for commercial and product lighting, but it’s also a creative tool for installation in venues, showrooms, museums and churches.



Features:

  • 16° to 36° on-board zoom with full shutters
  • High CRI source
  • Track adapter and wireless DMX control options



LIGHT SOURCE

  • Source: 35W high-power white LED
  •  (DY) 5.200K
  • CRI: (DY) >80
  • Luminous flux: (16°)  (DY) 2’095lm @full
  • Luminous flux: (36°) (DY) 2’425 lm @full
  • Source life expectancy: > 30.000 h



OPTICS

  • Zoom: 16° ~ 36° manual
  • Lens type: high-quality glass lens optics
  • Focus: manual



DYNAMIC EFFECTS

  • Gobo size: E, outer: 37,3 mm – image: 26 mm – thickness: 1,1 mm
  • Manual colour mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment



BODY

  • Body: sturdy die-cast aluminium body conceived for long-time durability
  • Body colour: black



CONTROL

  • Protocols: W-DMX
  • DMX channels: 1 / 3channel
  • W-DMX: included, wireless solution receiver
  • Display: black OLED high resolution display



ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 different dimming curves available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • Flicker: flicker free operation



ELECTRICAL

  • Power supply: 100-240 V – 50/60 Hz
  • Power consumption (at 230 V): 41,5W
  • Power consumption (at 120 V): 41,7W



PHYSICAL

  • Cooling: passive cooling and fan-free
  • Data connection: W-DMX
  • Power connection: moulded IP power IN connector
  • IP rating: 30
  • Dimensions (WxHxD): 195X293x338mm / 7.68”x13.31”
  • Weight: 2,5kg / 5.51lbs
