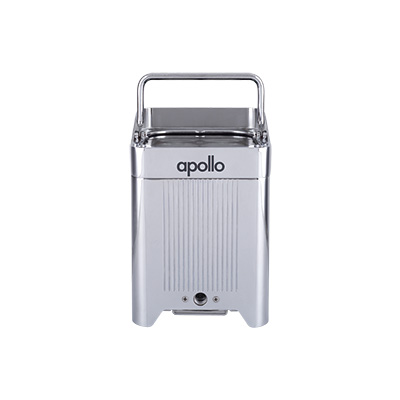

LED Apollo 6 units inc charging case (CHROME)

Battery-powered, outdoor-rated RGBW LED high-output uplights that go anywhere you go, cable-free. Wireless DMX or infrared remote control. In a six-piece road-worthy charging case.

Also available in black.



Description

LED WIRELESS BATTERY UPLIGHT SYSTEM (6 x APOLLO units + 1 x Charging case)

  • 4 x 10W RGBW (or RGBA) LED
  • IP65: Designed for both indoor and outdoor use
  • 8 hours continuous battery-powered operation at full output, 20 hours at single colour
  • Onboard W-DMX receiver
  • Ultra-linear dimming technology for flawless colour mixing

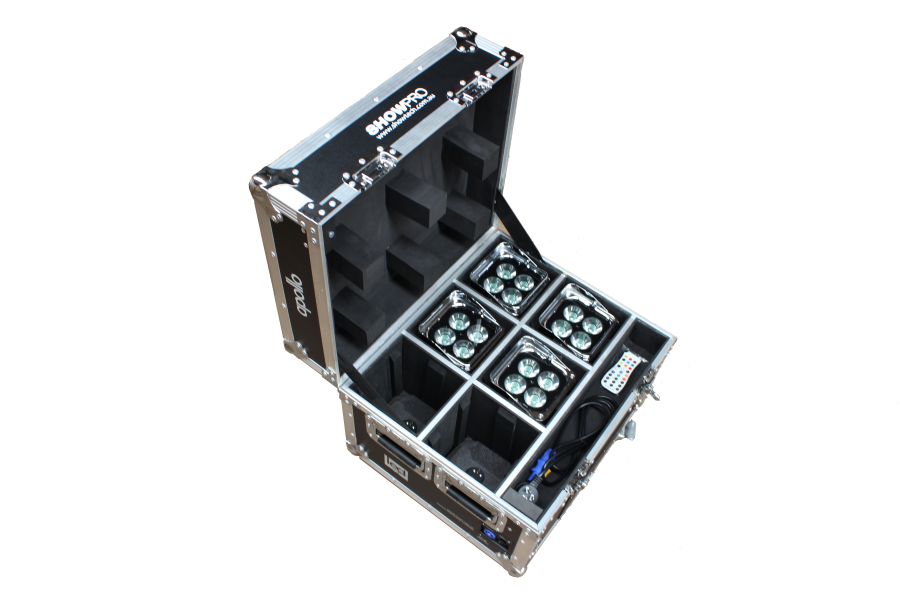

  • Charging station in rugged touring case holds 6 units
  • Threaded receiver for clamp mounting
  • Wireless DMX, Manual, IR control, Koala App
Photometrics
Light Source 4 x 10W RGBW (or RGBA) LED
Beam Angle 11°
Field Angle 19°
Output 1160 LUX @ 5 meters
Key Features
Color Mixing RGBW or RGBA
Strobe 0-30 Hz
Dimming 4 dimming curve modes
Control
Protocol W-DMX
DMX Channels 4 / 6 / 10 / HSV / HSI
Built-in Programs Yes
IR Remote Yes
Display OLED function menu with 4 touch buttons
Power
Mains 100 – 240 VAC, 50/60 Hz
Consumption 45W
I/O
Power charging in flight case
Data connections W-DMX
Housing
Material Diecast Aluminum
Finish Chrome or black
IP rating IP65
Thermal
Cooling Passive
Max. Amblent 40°C
Min. Amblent -20°C
Max. Housing 58°C
Physical
Dimensions 202 x 145 x 138 mm
Weight 3.7 KG
Misc / Options
Power cord Included
Charging case for 6 units Included
Infrared remote control Included
Mounting clamp Not included
