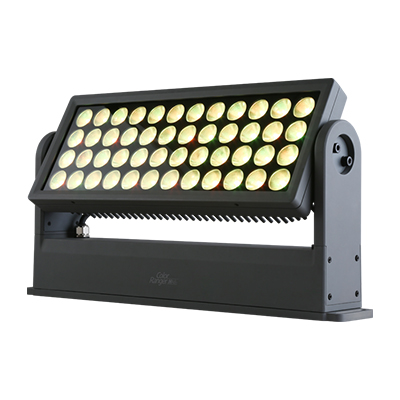

LED Colour Ranger (48) Architectural

Categories: , , , SKU: LEDWSH482

RGBW IP66-rated Architectural wash light with advanced thermal (fanless) design with W-DMX receiver on board.

Description

The LED Fusion Wash Q XLVIII (48) Architectural is a IP66 rated RGBW Wash light featuring:

• 48 x 10W RGBW LEDs deliver 22K lumens of perfectly blended colour
• 3 zone independent control of horizontal sections
• Silent operation suitable for indoor studio as well as outdoor use
• Selectable LED modulation for flicker-free output from 600Hz ~ 25kHz
• Ultra-linear dimming technology for flawless colour mixing
• Indestructible diecast body and tempered glass front panel
• Virtual colour wheel and white presets from 2800 ~ 10000K
• Four selectable dimmer curve modes
• Available optics: 10°, 15°, 25°, 45°
• RDM, DMX and W-DMX wireless control

Photometrics
Lamp Source 48 x 10W RGBW LEDs
Beam Angle 28° (with included filter)
Output 23225 lm
Key Features
Tilt angle +/- 130°(manual)
Colour Mixing RGBW
Strobe 1-30 Hz
Dimming 4 dimming curve modes
Control
Protocol RDM, DMX and W-DMX
DMX Channels 4 / 6 / 10 / 12
Power
Mains 100V-240VAC,  50/60 Hz
Consumption 535W
Power connections PowerCon true IP65 In/Out
Data connections IP66 XLR In/Out
Power Linking up to 3 units @230V
Housing
Material Diecast aluminum, tempered glass
Finish Matte gray



IP rating IP66



Thermal
Cooling Passive (fanless)
Physical
Dimensions 584 x 93 x 304 mm
Weight 13.4 KG


ek lights@colour ranger architectural 48.xml    42.95 KB
EK_Lights@Colour_Ranger_Architectural_48@1.01.gdtf    50.36 KB
LEDWSH482 COLOUR RANGER 48 Datasheet.pdf    2.66 MB
