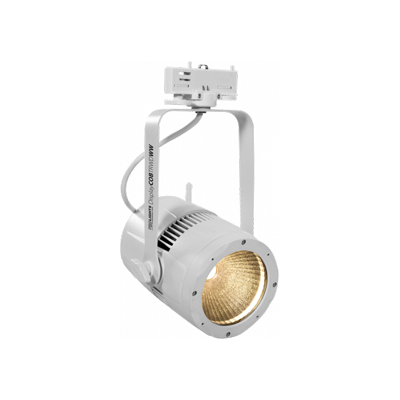

LED Display COB WW Track WDMX White

Featuring elegant white housing and Wireless DMX module on-board for the remote control of the light making this a perfect solution for an innovative installation in commercial spaces, showrooms, museums and churches.

Barndoor CODE: MUSDIS115

Description

LED Display COB WW Track WDMX White employs 45W COB LED source tungsten white 3200K combined with a special parabolic reflector built in aluminium which develops an extremely bright and homogeneous output and interchangeable lens systems to switch from 60° (incl.) to 30° (incl.) and 15° (opt.)

Features:

  • Track mounted compact LED PAR with 45W warm white COB source and wireless DMX control
  • HD dimming and an extensive and even colour palette
  • Flexible lens options of 15°, 30° and 60° and functional barndoors



LIGHT SOURCE

Source: 45W white COB LED

CT: 3200K

CRI: >97

Luminous flux: 1682lm

Lux: (60°) 244.7lux @3m

Lux: (30°) 659.4lux @3m

Source life expectancy: >30.000 h



OPTICS

Beam angle: 60°

Field angle: 80°

Lens type: dichroic parabolic reflector in combination with HD fresnel lens

Additional optics: 30° (inc) – 15° (opt)



DYNAMIC EFFECTS

Static colour mode: selection of static colour

Manual colour mode: manual adjustment of dimmer and strobe

Auto mode: built-in programs with execution speed adjustment



BODY

Body: sturdy die-cast aluminium body conceived for long-time durability

Body colour: black



CONTROL

Protocols: DMX512

DMX channels: 1 / 2 / 5channel

W-DMX: included, wireless solution receiver

Display: black OLED high resolution display

Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included

Master/Slave: for synchronized operation of more units linked in a chain



ELECTRONICS

Dimmer: linear 0~100% electronic dimmer

Dimmer curves: 4 different dimming curves available

Strobe / shutter: 1-28 Hz, electronic

Operating temperature: -10° ~ +45°

Flicker: flicker free operation

Selectable PWM: 600~25K Hz



ELECTRICAL

Power supply: 100-240V – 50/60Hz

Power consumption (at 230V): 62W

Power consumption (at 120V): 57W

Output (at 230V): 24 units on a single power line



PHYSICAL

Cooling: natural cooling of the peculiar chassis and to absence of fans

Sospension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

Signal connection: XLR 5p IN/OUT connectors

Power connection: moulded IP power IN connector

IP rating: 20

Dimensions (WxHxD): 166x118x250mm

Weight: 1.85kg



DISPLAYCOBTRWDWW_manuale.pdf    1.55 MB
