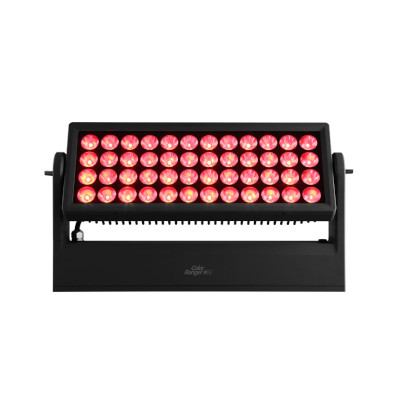

LED Fusion Wash Q XLVIII (48)

RGBW IP65-rated wash light with snap-on beam shaping filters and advanced thermal (fanless) design with W-DMX receiver on board.


The LED Fusion Wash Q XLVIII (48) Outdoor Rated RGBW Wash light featuring:

• 48 x 10W RGBW LEDs deliver 22K lumens of perfectly blended colour
• Interchangeable beam shaping filters for precise control of light output
• 3 zone independent control of horizontal sections
• Silent operation suitable for indoor studio as well as outdoor use
• Selectable LED modulation for flicker-free output from 600Hz ~ 25kHz
• Ultra-linear dimming technology for flawless colour mixing
• Indestructible diecast body and tempered glass front panel
• Virtual color wheel and white presets from 1800K~8000K
• Four selectable dimmer curve modes
• Quick-Lock (Omega) bracket for easy installation
• Available optics: 8°, 15°, 25°, 45°
• Included accessories: 60° Diffuser, Omega bracket, saftey cable for diffuser
• Optional accessories: Barndoors, diffusers 20°/30°/50°/60°/60×10°/60×30°frost
• RDM, DMX and W-DMX wireless control

Lamp Source 48 x 10W RGBW LEDs
Beam Angle 25° (with included filter)
Output 22760 lm
Key Features
Tilt angle +/- 90°(manual)
Colour Mixing RGBW
Strobe 1-30 Hz
Dimming 4 dimming curve modes
Protocol RDM, DMX and W-DMX
DMX Channels 4 / 6 / 10 / 12
Display OLED function menu with 4 touch buttons
Mains 100V-240VAC,  50/60 Hz
Consumption 521W
Power connections PowerCon true IP65 In/Out
Data connections IP65 XLR In/Out
Power Linking up to 4 units @230V
Material Diecast aluminum, tempered glass
Finish Matte black


IP rating IP65


Cooling Passive (fanless)
Dimensions 563 x 93 x 314 mm
Weight 12.9 KG
