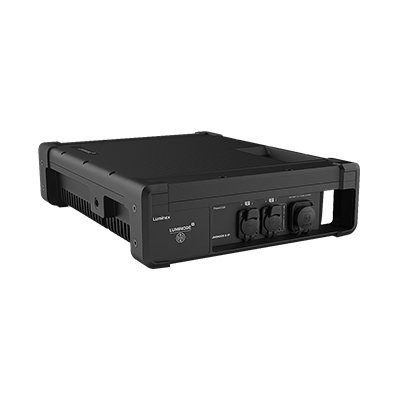

Luminode 8-IP

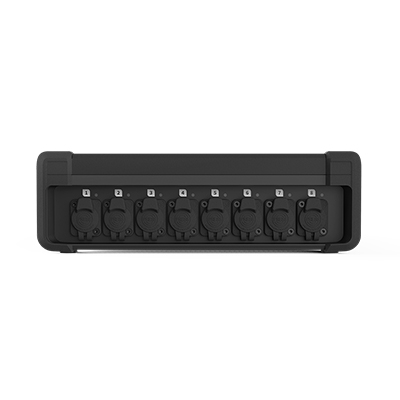

Designed for reliable outdoor use, it features passive cooling, a sufficient PoE budget, and resistance to extreme temperatures, rain, splashes, and dust. Equipped with 2x 1Gb etherCON TOP ports and 8 DMX ports with NC5FDXX-TOP connectors, LumiNode 8-IP offers flexibility in a weather proof package. Each port is fully optically and galvanically isolated and can be configured as an in- or output. All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTrPL (Blacktrax) are supported and can be processed and converted in no less than 12 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.

LumiNode 8-IP also supports remote device management (RDM), has automatic functional and operational redundancy and recovery to reliably cope with the most challenging lighting tasks. A show recording and play-back mode lets you conveniently store lighting scenes and play these back when triggered to do so. LumiNode 8-IP is efficient and has a low power consumption and can be powered via PoE or via a robust IP rated Neutrik powerCON True1 TOP connector.

LumiNode 8-IP is easy and intuitively to operate. Configuration can be done through a built in web-based user interface or with an NFC compatible smartphone, even when the LumiNode 8-IP is not connecter to power. The fully documented open API facilitates full integration with any 3rd party control or management system. With its two 1Gigabit ethernet ports, LumiNode 8-IP offers the possibility of an advanced network interface making it possible to separate the lighting network data streams from IT related data, allowing for remote status monitoring and management without interfering with critical lighting control data streams.

Luminode 8-IP with its 1Gbps etherCON TOP connectors is ready for future ethernet-only based lighting networks. Luminode 8-IP features group (VLAN) technology, which allows you to arrive at the Node with an ISL connection, connect the node to the lighting group and use the second Ethernet port for other purposes in another group (for example video control, Dante audio, …).
