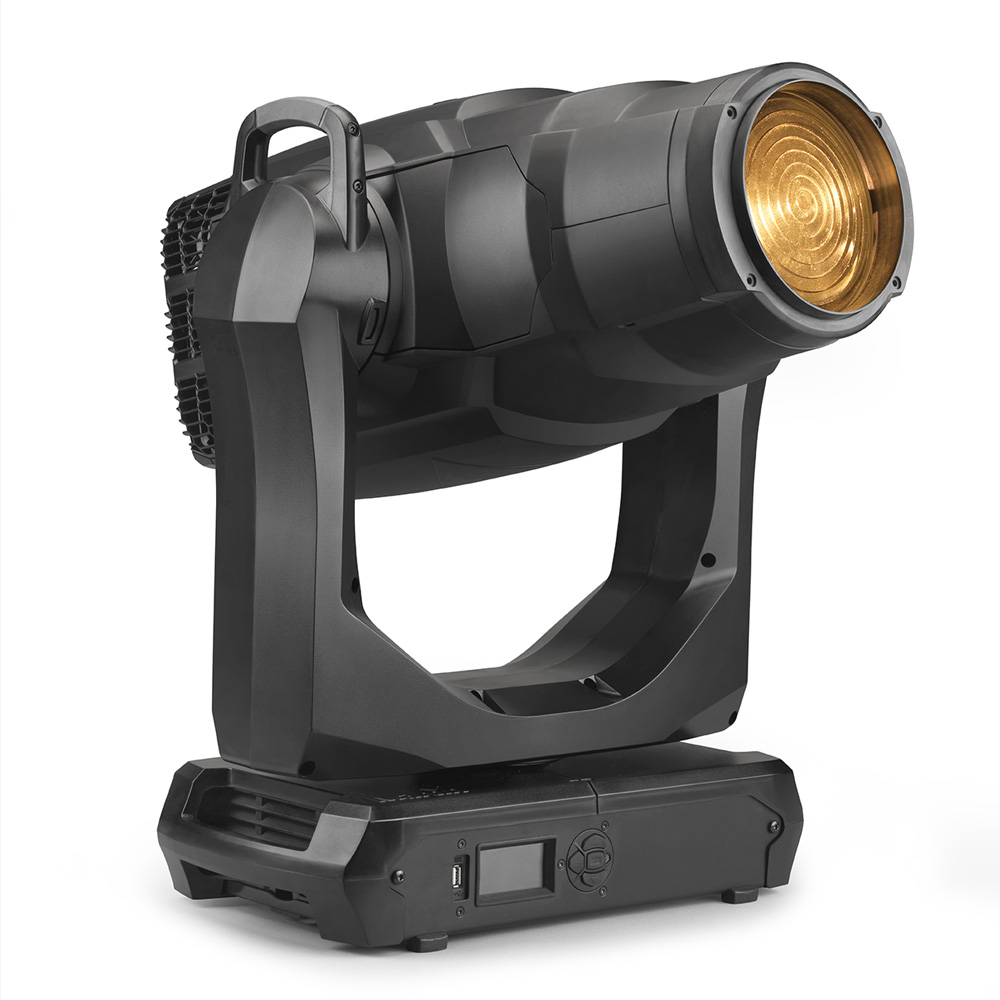

MAC Encore Wash WRM

Categories: , , , , , , Product Code: MARMAC612 Tag:

Designed to produce rich colour and premium white light in a wide variety of applications where light quality is critical, the MAC Encore™ Wash WRM is a perfect, LED-based, replacement for the much-loved, discontinued MAC TW1.

SEND ENQUIRY

Description

The feature-packed soft edge moving head offers unparalleled 3000 K warm tungsten emulation that truly challenges the output quality of a real incandescent light source, and doubles as a modern replacement for generic fixtures like tungsten based Fresnel fixtures, with the additional benefit of colour mixing and movement.

  • Pure white LED engine with 3000 K CCT.
  • No colour temperature variation during zoom and dimming.
  • Flicker-free operation—LED driver frequency suitable for all camera applications.
  • Whisper-silent—Combines convection and forced air cooling with user-selectable output vs. sound level control.
  • Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.
  • Vibrant CMY colour mixing with a superior palette of colours ranging from rich, saturated primary colours to light and smooth pastel shades.
  • Variable CTB—tungsten to daylight CCT control and expansion of the CMY palette that stays true to the black body curve.
  • Color wheel—6 interchangeable dichroic filters + open.
  • Fresnel lens: 1:4 zoom—precise, silent and fast zoom.
  • PC lens (optional): 1:5 zoom—precise, silent and fast zoom.
  • Internal barndoor system with two shutter blades and iris. Shutter blades can overlap for full blackout and the entire system rotates +/- 100°. Repeats cues with great precision.
  • Precise and tight iris with adjustable dynamic effects.
  • Animotion™ FX System—Internal dimming effect macros for stunning 3D mid-air and projection effects.
  • Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring.
  • Compact size—L: 452 x W: 480 x H: 745 mm / L: 17.8 x W: 18.9 x H: 29.3 in.
  • Low weight—28.5 kg/62.9 lbs
  • Foam rubber (SIP) flight case insert for secure shipment.



Physical
Length: 452 mm (17.8 in.)
Width (across yoke): 480 mm (18.9 in.)
Height (maximum): 755 mm (29.8 in.)
Height (head straight up): 745 mm (29.4 in.)
Weight: 28.5 kg (62.9 lb.)
Minimum center-to-center distance in side-by-side installation: 730 mm (28.8 in.)
Dynamic Effects
Color mixing: CMY, independently variable 0 – 100%
Color temperature control: Variable 3000 – 7000 K
Color wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color
Barn doors: Internal, two blades with individually controllable insertion, +/- 100° module rotation
Iris: Variable 0 – 100%
Dimmer/shutter: 0 – 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
Dimming options: Choice of four dimming curves
Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
Zoom: Motorized
Pan: 540°
Tilt: 268°
Position correction system: Absolute position monitoring
Control and Programming
DMX channels: 24
Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
16-bit control: Dimming, pan and tilt
Movement control options: Tracking and vector
Fixture identification: User-settable ID number
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485
Fixture software update: USB memory device or over DMX link
Optics
Light source: 3000 K white LEDs
Total LED engine power: 468 W
Minimum LED lifetime: 50 000 hours (to >80% luminous output)*
Zoom range with Fresnel lens (standard): 14° – 60° one-tenth peak (1:4)
Zoom range with PC lens (optional): 11° – 58° one-tenth peak (1:5)*
Figure obtained under manufacturer’s test conditions
Photometric Data
Light engine luminous output: ≥ 31 500 lumens
Fixture luminous output with Fresnel lens (standard): 8500 lumens
Fixture luminous output with PC lens (optional): 9500 lumens
CRI (Color Rendering Index): >90
CQS (Color Quality Scale): >90
TM-30 Rf (IES TM-30-15 Fidelity Index): >90
TM-30 Rg (IES TM-30-15 Gamut Index): >98
TLCI (Television Lighting Consistency Index): >90
Construction
Color: Black
Housing: High-impact flame-retardant thermoplastic
Protection rating: IP20
Installation
Mounting points: 4 pairs of 1/4-turn locks
Location: Dry location only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m (8 in.)
Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
Connections
AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)
DMX and RDM data in/out: 5-pin locking XLR
Electrical
AC power: 120-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Power consumption, all effects static, zero light output: 64 W
Half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
Typical Power and Current
120 V, 60 Hz: 5.0 A, 596 W, PF 0.998
208 V, 60 Hz: 2.9 A, 581 W, PF 0.988
230 V, 50 Hz: 2.6 A, 580 W, PF 0.981
240 V, 50 Hz: 2.2 A, 585 W, PF 0.979
Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity.
Allow for a deviation of +/- 10%.
PF = power factor
