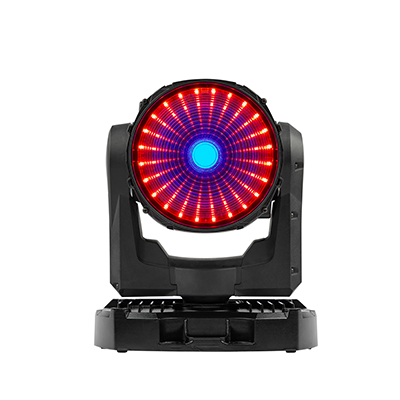

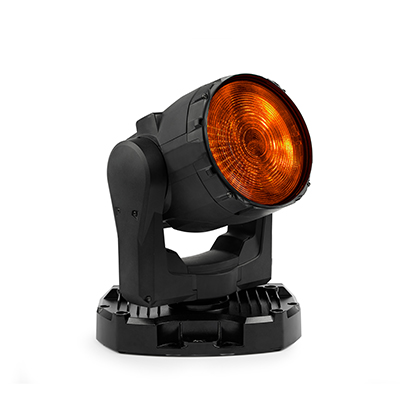

MAC One

Martin MAC One empowers creative expression for professionals throughout the lighting industry. The fixture is extremely compact and lightweight and punches above its size and weight, optimizing costs for rental companies. MAC One transforms stage design for experts, rental companies, and event organizers in applications such as concert/touring, TV sets, theatre, corporate events, high-end nightlife venues, clubs and cruise ships.

Description

Compact, lightweight, and highly versatile, MAC One defines a new compact class of performance lighting.

MAC One excels in three powerful feature areas. First, its narrow, high-intensity beam packs the same punch as larger, heavier fixtures to enable robust and vibrant aerial effects. Next, its stunning Fresnel lens creates a soft wash with a 4 to 27-degree zoom range, delivering seamless transitions and engaging visual effects. Rounding out the robust feature-set is an innovative backlight system with 24 RGB effect LEDs within the lens to guarantee memorable and show-stopping visual experiences.

With an impressive output of 2,400 lm and a narrow beam intensity of 300,000 cd, MAC One’s performance is unparalleled in its category. Powered by a custom-developed 120 W RGBL (Red, Green, Blue, Lime) LED engine, it ensures higher light quality (CRI, TM-30, TLCI) than traditional RGBW fixtures, appealing to discerning lighting designers.

MAC One stands out against competing fixtures by delivering an innovative combination of features in an incredibly compact and low-weight form-factor. The fixture is easy to handle and manage, opening up a world of creative possibilities for lighting designers and users. More fixtures can be used in a show without compromising weight or space limitations, resulting in lower transport costs and a significant return on investment for rental companies.

For additional versatility, MAC One can also be used with the interlocking accessory system originally created for Martin’s VDO Atomic products. Martin fourbar and matrix accessories can also be used to further extend its design potential and ease large quantity deployment. MAC One can be driven with DMX, Art-Net, sACN, and Martin P3 control systems for seamless integration into any lighting setup.

Whether you are a lighting designer, rental company, or event organizer, MAC One is the answer for creating big looks with many fixtures, utilizing a compact fixture for tight spaces or enthralling the stage with captivating eye-candy effects. Transcend expectations, empower creative expression and revolutionize the stage with MAC One.



Light Source

  • Custom in-house developed 120 W RGBL (Red, Green, Blue, Lime) LED offering higher light quality (CRI, TM-30, TLCI) than RGBW
  • Lumen Output: 2400 lm
  • Intensity: 300,000 cd in narrow beam
  • Backlight Effect: 24 x 0.25 W RGB LED
  • Fully calibrated using Martin’s Full Gamut Colour Calibration
  • Flicker-Free operation
  • LED Driver frequency adjustable for demanding applications

Optics

  • 150 mm Fresnel lens
  • 4 to 27 degrees zoom
  • Defined narrow beam
  • Soft edge wide wash
  • Minimal stray light
  • Minimal colour temperature shift from center to edge
  • SoftLens accessory included

Colour Palette

  • RGBL colour mixing with very bright and vibrant saturated colours, as well as soft pastels and white tones
  • Calibrated and Extended Colour Modes
  • Calibrated Colour Temperature Control: 1,000 – 12,850 K
  • Calibrated Green Magenta Shift (Tint) Control: Δuv -0.05 – +0.05
  • Tungsten Emulation Option
  • Virtual Colour Wheel

Dynamic Effects

  • More than 200 built-in FX macros with control of foreground colour, background colour, speed and direction
  • P3 video mapping of fixture Beam and/or Fresnel Backlight pixels
  • P3 Mix allowing crossfade between video looks and DMX looks
  • Extreme speed pan, tilt and zoom

Cooling and Noise

  • Ultra-quiet cooling system (no fans in base, only fans in head)
  • Theater / Broadcast mode at just 23.0 dB(A)
  • Low noise pan, tilt and zoom mode

Construction

  • Weight: 4.4 kg / 9.7 lbs.
  • Dimensions: 254 x 336 x 220

Control

  • DMX, Art-Net, sACN & Martin P3 control
  • Fail-safe bypass on Ethernet ports
  • Battery-powered display for setup and configuration

Installation

  • Single omega bracket attachment
  • M12 threaded holes for direct clamp attachment or attachment to four-bar accessory
  • Optional four-bar accessory
  • Optional grid mount ring accessory
