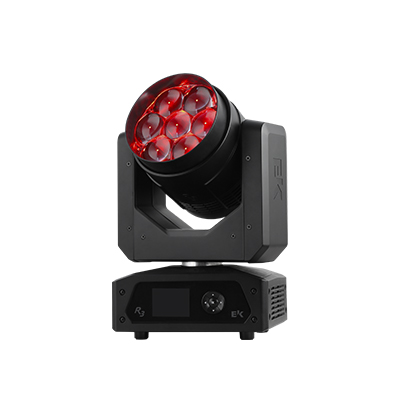

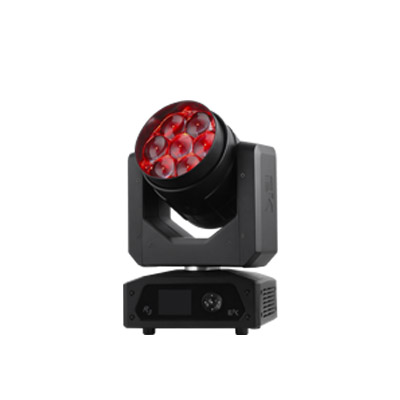

R3 Wash

The R3 wash is a small, yet powerful and extremely versatile fixture equally suited to on-stage duties as a narrow beam fixture, boasting a super fat bright beam at 4° and can achieve a soft edge wash with loads of output at 60°. The R3 wash is great for both theatre applications and table-spotting when you’re particularly needing amber yellows and natural-looking warm tones because it can produce a beautiful gold colour.



Description

The large 4° to 60° zoom range allows for fat bright beam looks through to large area washes thanks to high output from the 7x 40W LED chips with homogenized lens. Featuring RGB+Warm White LED engine, a large colour palette is able to be achieved from saturated bold colours through to subtle pastels and amazing gold and ambers. Superfast 16bit Pan and Tilt and ultra-smooth dimming round out a first-class feature set in this tiny 7kg package.



Features:

– 4°- 60° linear zoom
– Compact, lightweight, fast
– Two pan/tilt speed modes (normal & super-fast turbo)
– Onboard user preset library (save/load)
– Built-in colour and strobe macros
– Smooth dimming
– RGB Gamma adjustment
– White colour temp presets from 2500~8000K
– Flawless 16-bit 540°/270° motorized pan/tilt movement
– Selectable PWM frequency for flicker-free video with any camera
– DMX, RDM control

Applications are wide and varied for this unit, some suggestions below:
– Overhead wash for small stages/low trim height
– Front light for small stages
– Anywhere that requires a full-colour fresnel but wants movement as well
– As a floor package Up Stage fixture
– Rigged as bars of 4 for a modern take on the classic park look
– Events table spotting with colour mixing, warm whites and the ability to utilise movement.

OPTICAL SYSTEM

  • Light Source: 7 x 40W RGBWW LEDs
  • Beam Angle: 4° – 34°
  • Field Angle: 4° – 60°
  • Dimming: 16 Bit with 4 Selectable Dimmer Curves
  • Output (lux): 18144lx ~ 439lx (min ~ max beam angle) @ 5 meters



ELECTRIC SPECS

  • Mains: 100 – 240 VAC, 50/60 Hz
  • Consumption: 310W @ 230V
  • Power connections: PowerCon In/Out



CONTROL SYSTEM

  • Colour mixing: RGBWW
  • Macros: Colours, Strobe
  • Strobe: 1 ~ 30Hz
  • Pan movement: 540° 16 Bit
  • Tilt movement: 270° 16 Bit
  • Protocol: DMX, RDM
  • DMX channels: 16 / 20
  • Data connections: XLR In/Out for DMX
  • Onboard menu: TFT display with 4-button navigation
  • Cooling: Active (variable speed fan + silent mode)

APPEARANCE

  • Material: Plastic and Aluminium
  • Finish: Matte black
  • IP rating: IP20
  • Dimensions: 249 x 183 x 345 mm
  • Weight: 6.6 KG
  • Mounting: Omega Bracket (included)


ek lights@r3 wash.xml    72.16 KB
EK_Lights@R3_Wash@1.00.gdtf    68.96 KB
EK_Lights@R3_Wash@StdRGB.16bit@Rev_1_May_20202_-_not_setup_for_3D.xml    36.78 KB
LEDMOV430 - LED R3 Wash Manual.pdf    3.11 MB
LEDMOV430 - R3 Wash Datasheet.pdf    1.36 MB
