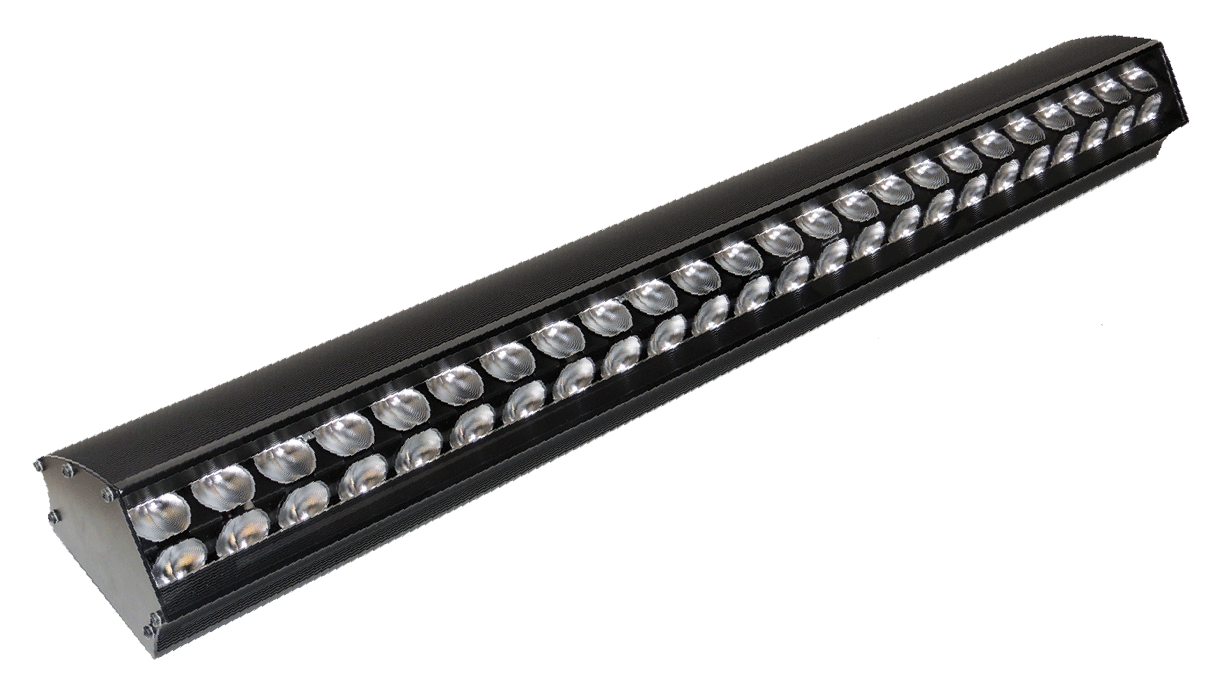

Dalis 862 Variable White Footlight

Offering a true tunable white from 2200K to 6500K, Dalis 862 footlight incorporates 48 patented asymmetric reflectors arranged in a double row. Each row can be controlled independently offering long or short throw capacities and creating upstage or downstage lighting.


Set at the edge of the stage and not visible to the audience, Dalis 862 provides quality white light on performers from the front to the back of the stage. Each unit also integrates red and blue coloured position lights independently controlled, acting as a signal for the performers and also marking the edge of the stage.


• True tunable white: From very warm (2200K) to daylight (6500K) to match every skin tones and moods on stage

• 4 red and blue coloured position lights: Individual control of each light acting as a signal and marking safely the edge of the stage without disturbing the audience

• Strobe: Independent control of speed and duration

• Universal data control: Compatible with DMX, RDM, Art-Net, sACN protocols

• Easy setup: Locally by keypad and remotely by RDM or TCP/IP – integrated display

• 16-bit control: Independent and precision dimming on both warm and cool whites

• Control of up to 4 groups: Precision lighting by separating the unit into 2 or 4 sections to target defined areas on stage

• Dimming parameters: Adjustable curves and response time for fast or slow dimming (tungsten-like simulation)

• Adjustable feet: Can be installed directly on the floor; simple retractable foot mechanism to aid floor focusing

RJTCYC105 - DALIS 862 150w Variable White Footlight 1m - Datasheet.pdf    2.57 MB
RJTCYC105 - DALIS 862 150w Variable White Footlight 1m - Quickstart Guide.pdf    505.96 KB
RJTCYC105-106 - DALIS 862 Variable White Footlight - Manual.pdf    6.55 MB
