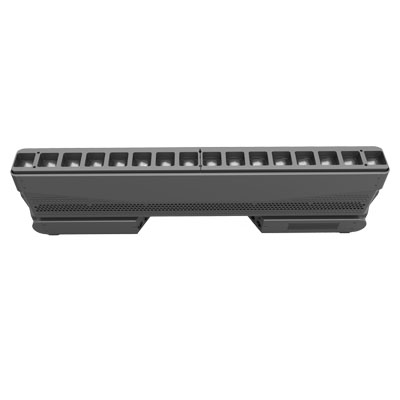

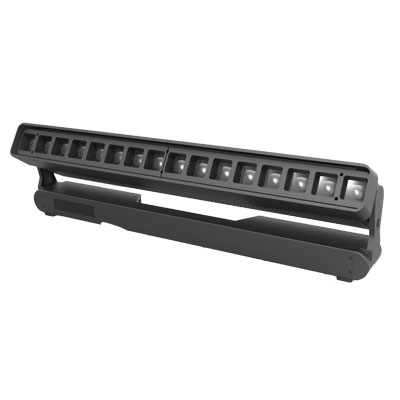

Tambora Batten Square

Categories: , , SKU: CLPTAM110

A high-power LED batten fixture, with advanced pixel mapping capabilities and unique “three layers” selection, which you can arrange seamlessly in line or in a matrix for amazing lighting effects.

Description

The need for a high-power, feature-rich batten fixture is now fulfilled with the Claypaky Tambora Batten. Powered by sixteen Osram 40W RGBW LEDs – the same LEDs used to power the HY B-EYE and MINI-B fixtures – this fixture allows dynamic control of each LED cell for dynamic pixel mapping effects. Users can control each LED’s colour, dimming, and strobe rates individually or in unison. Several bars may be arranged seamlessly in a line or in a matrix while maintaining the distance between the LEDs between fixtures for uniform appearancse side-by-side and top to bottom.

The Tambora Batten offers linear zoom control from 4° to 50° and the unit’s cells tilt has a range of over 220° making it very versatile. It also features white color temperature range from 2500-8000K, beam edge softening control for soft uniform washes and a unique “three layers” selection in advanced mode. With this feature the operator may choose to use three levels of effects at the same time. You can simultaneously choose a background color, an internal built-in sequence, and video content coming from an external source – switching between all the layers quickly and easily.

Available in Square sized lens configuration, the Tambora Batten is an adaptable lighting instrument that addresses many needs for inline or matrix lighting applications, at an excellent cost to performance ratio.



Product Features:

• Light source: 16 x 40W RGBW Osram LEDs

• Highly efficient light output (9,934 lm)

• 4° to 50° zoom range

• Adjustable tilt over 220°

• Individual LED control for each parameter

• White CT emulation 2500-8000K

• Beam edge softening control (in wash mode)

• Unique “three layers” selection in advanced mode

• Exclusive parallel beam consisting of an array of individually controllable micro-beams

• Enhanced electronic engine for dynamic beam pattern design, with digital accuracy and repeatability

• Control signal: USITT DMX 512. Protocols: RDM, WebServer and Art-Net

• Arkaos Kling-Net protocol already included in the firmware

• DMX channels: 13/17/27/29/35

• Pixel engine: 48 and 64 channels

• Input Power: 660 VA@230Vac 50Hz

• Weight: 15.5 kg (34.2 lbs)

• Dimensions: 105 x 1000 x 288 mm (4.13 x 39.4 x 11.3 in)



POWER SUPPLIES

  • Operating Voltage: 100-240V, 50/60 Hz – In/Out Max 4(2) fixtures @ 200-240Vac (@ 100-120Vac)
  • Power Supply: Electronic auto range with active PFC

INPUT POWER

  • Max Power consumption: 660VA

LIGHT SOURCE TYPE

  • 16x 40W RGBW Osram LEDs
  • Colour Temperature: 8000K to 2500K
  • LED life expectancy: 50000Hrs L70*
    *It may vary depending on various factors, as type of use and environment.

PHOTOMETRIC DATA

  • Zoom range: 4°- 53°
  • 9,934 Lumen Output
  • Square: 16x Square lenses: 47x47mm
  • High efficiency optical system

NOISE LEVEL

  • Auto: 40.5 dBA
  • Constant: 43.5dBA
  • Silent: 36.7 dBA
  • Theatre: 36.2dBA

CONTROL and CONNECTIONS

  • Personalities: 5 modes with 13/17/27/29/35 control channels – Pixel Engine: 48 and 64 channels
  • Control Protocol: DMX, Art-Net, RDM
  • Arkaos Kling-Net protocol already included in the firmware
  • DMX and RDM connectors: Locking 5 pin XLR IN/OUT
  • Ethernet port: RJ45 IN
  • Power connector:  PowerCon True1  IN/OUT
  • Built In Web Server

DYNAMIC EFFECTS

  • Individual LED control for each parameter
  • White CT emulation 2500-8000K
  • Beam edge softening control (in wash mode)
  • Exclusive parallel beam consisting of an array of individually controllable micro-beams
  • RGBW color mixing system
  • Shape effects
  • 16bit resolution with 5 different dimmer curves
  • Electronic strobe/stop from 1 to 25 f/sec
  • Pixel mapping control
  • Unique “three layers” selection (Just in Advanced mode)

Movement:
– Tilt: 220° – 16bit
– Fast/Normal speed selectable by Function channel
– Mechanical Tilt lock for safe transportation and maintenance

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM

HOUSING

  • Aluminum and steel structure with plastic covers
  • IP20 protection rate

WORKING POSITION

  • Working in any position
  • Hanging system: with fast-lock clamp
  • Optional safety chain

THERMAL SPECIFICATION

  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -10°C (14°F)
  • Max temperature of the external surface 90°C (194°F)
  • Total heat dissipation: 2220 BTU/hr ±10% / 2340 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects 0.5 meters (1’ 8”)
  • Minimum distance from flammable materials 0.2 meters (8”)
  • Fuse T10A – 250V
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans

COMPLIANCE

  • In conformity with the European Directives:
  • 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU – Electromagnetic Compatibility (EMC)
  • 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC – EcoDesign requirements for Energy-related Products (ErP)
  • cMETus Listed

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (2 positions)

WEIGHT – SIZE

  • 15.5 Kg (34.2 lbs)
  • 105×1000 (base dimension) – 288mm with vertical head (h)
  • Distance between two fixtures: 1000mm

ACCESSORIES

  • Hanging Clamp: 389100/801 (included)
  • Standing Clamps: 2x 389101/801 (included)
  • Power cord: CAB02B/802 (included)
  • Safety Chain: 105015/801 (optional)
  • Foam shell: F21325/001 (optional)
  • Flight case: CF1007 (optional)
  • Round lenses assembly: CA3010000102 (optional)
  • Square lenses assembly: CA3011000102 (optional)
  • Frost 2°: CA3018000102 (optional)
  • Frost 5°: CA3012000102 (optional)
  • Frost 10°: CA3013000102 (optional)
  • Frost 20°: CA3014000102 (optional)
  • Frost 10°/60°: CA3015000102 (optional)
  • Aligned Floor bracket: CA3016000102 (optional)
