Xtylos

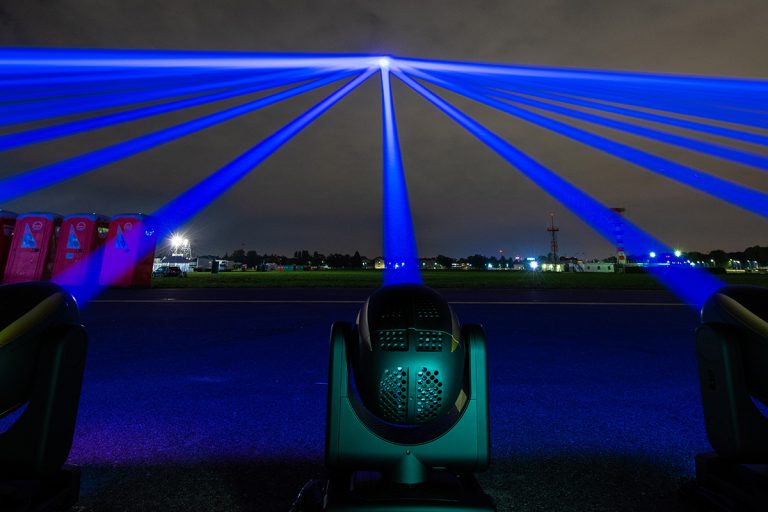

The Claypaky Xtylos is a compact beam moving light with unique optical and chromatic characteristics, making use of a tailor-made laser source (Patent Application filed).



Description

This laser source, lasting for 10,000 hours, is enclosed in a reliable, safe and fully sealed module and it is the powerful engine of an incredible array of colours.
The beam aperture is 1° and it can be decreased further to 0.5°. The Xtylos uses laser technology with RGB additive colour mixing. In contrast to the subtractive mixing used with discharge lamps, coloured light beams are as bright as a white light beam! The range of effects features two gobo wheels – with 7 rotating gobos and 12 fixed gobos (including 7 beam diameter reducers) – a wheel with 3 prisms, and a sixteen facet prism on a dedicated channel which can be overlapped with the prism wheel.
The Xtylos is definitely the most dynamic light on the market. It is the first moving head light with a laser light source, and this opens up new, surprising prospects for the development of the entire entertainment lighting world.

  • Light Source: Tailor-made laser engine, enclosed in a sealed module
  • Long lasting light source (10,000 hours) with minimal decay
  • Solid, flat field, saturated, ultraconcentrated light beam without any visible hotspots.
  • Natural beam aperture: 1° (up to 0.5° using beam diameter reducers)
  • RGB additive colour mixing, with exclusive Turbo-colours
  • Unequalled colour consistency both across different fixtures and during lifetime.
  • Exclusive Blazer graphic effects
  • One wheel with 7 rotating gobos
  • One wheel with 12 fixed gobos (incl. 7 beam reducers)
  • One wheel with 3 prisms and 1 frost filter
  • Sixteen-facet prism on a dedicated channel
  • Unrivalled effect and colour change speed
  • Compact housing with easy accessibility to all modules
  • Extremely fast pan-tilt movements
  • Ultra-precise 24-bit digital dimmer



POWER SUPPLIES
-AC power input/output Neutrik PowerCON True1
-100-240V, 50/60 Hz

INPUT POWER
-400 VA @230Vac – 50Hz

LIGHT SOURCE
-Tailor-made laser engine, enclosed in a sealed module
-Long lasting light source (10,000 hours) with minimal decay
-Solid, flat field, saturated, ultra-concentrated light beam without any visible hotspots

OPTICS
-Natural beam aperture: 1° (up to 0.5° using beam diameter reducers)
Electronic Focusing

COLOUR SYSTEM
-RGB Laser based system
-Linear Virtual CTO
-Macro Colour

EFFECTS SECTION
-12 static Gobos, including 5 beam diameter reducers
-7 Rotating Gobos
-3 Rotating Prisms on 1 wheel: Convex plane, Pyramid 6 facets, Linear 6 facets
-1 Rotating Prism with 16 facets
-1 Frost filter (on the rotating prism wheel)
Effects Macro
-0-100% digital dimmer, 24 bit
-Fast digital stop/strobe effect

CONTROL AND PROGRAMMING
-Inputs: DMX 512 – Art-Net
-DMX protocol signal: USITT DMX 512
-30/34 DMX 512 control channels
-Display: LCD 128 x 64 Dots, backlit LED, white on black
-Pan and Tilt Resolution: 16 bit
-Focus Indexing Resolution: 16 bit
-Dimmer Resolution: 16 bit
Rotation gobo Resolution: 16 bit
-Rotating gobo indexing
-Rotating 3prisms Resolution: 8 bit
-Rotating 3prisms indexing
-DMX signal connection: 5 pole XLR input and output
-Software upload through DMX input / Ethernet input
-RGB colour calibration
-Real-time colour control algorithm when not in raw mode (CTO channel > 0)
-Laser driver safety control logic at firmware level to switch-off light output in a safe state, when parameters outside of working range (redundant with hardware level safety)
-RGB derating to preserve laser diodes

BODY
-Aluminium and steel structure with plastic covers
-Two side handles for transportation
-Device locking PAN and TILT mechanisms for transportation and maintenance

MOVING BODY
-TILT range 251°
-Fast speed (Pan 2.46 – Tilt 1.68)
Accuracy:
Resolution ± 0,17° (Range 0,35°)

ELECTRONICS
-Long life self-charging buffer battery.
-Function reset from control unit.
-Function reset from the lighting desk.
-“AUTOTEST” function from menu.
-Electronic monitoring with status error.
-Cooling system monitoring.
-DMX level monitoring on all channels.
-Internal data transmission diagnostics.
-Firmware Upgrade with no power (cpu only)
-Firmware upload from another fixture (cpu only)
-Base colours control: primary colours (RGB) in raw mode
-Protocols/Functions: RDM, Web Server, ArtNet.
-Source calibration in the production line.
-Extremely reliable communication bus RS485
-On-module calibration (calibration data are directly stored on the laser module)

SAFETY DEVICES
-Minimum distance of illuminated objects 10 meters (32’ 10”)
-Minimum distance from flammable materials 0.2 meters (8”)
-Max ambient temperature 40°C (104°F)
-Max temperature of the external surface 60°C (140°F)
-Safety devices Bipolar circuit breaker with thermal protection
-Automatic break in power supply in case of overheating
-Forced ventilation with axial fans

WORKING POSITION
-Working in any position
-Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE MARKING
In conformity with the European Directives:
• 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU – Electromagnetic Compatibility (EMC)
• 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC – EcoDesign requirements for Energy-related Products (ErP)

WEIGHT
-24 Kg (53 lbs)

DIMENSIONS

-391mm x 294 mm x 603mm (15.4” x 11.6” x 23.7”)
