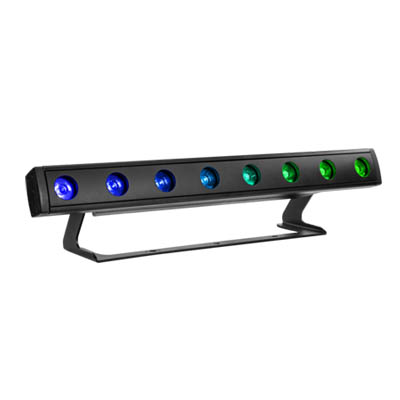

Z8 Strip FC

Z8STRIP is a new generation battery operated fixture that marks a new step in wireless lighting technology, being one of the brightest portable fixtures in the event industry.

OUT OF STOCK – Please call your nearest office for more information or a recommended replacement product.

Description

Z8STRIP is encased in IP65 rated housing allowing it to meet any working condition. Featuring 8x10W high-power RGBW full colour CREE LEDs pixel controlled to achieve high brightness and can also a favourite for temporary architectural installations. Z8STRIP is equipped with a lithium battery pack allowing it to be left out for up to 16 hours (colour-changing) and W-DMX control for full cable-free operations.

Features:

  • Huge light output from a battery luminaire with 8x10W CREE XML RGBW LEDs
  • Wireless DMX control, 8 hours battery life on full white and IP65 rating for incredible versatility
  • On-board mains and DMX connectors for standard use

LIGHT SOURCE

  • Source: 8x10W RGBW LEDs
  • Luminous flux: 1064lm
  • Lux: 4600lux @3m full
  • Source life expectancy: >50.000 h

OPTICS

  • Beam angle: 10°
  • Field angle: 21°
  • Other: Magnetic holder for diffusion filters or gels

COLOUR SYSTEM

  • Colour mixing: RGBW/FC
  • White presets: 3200~10000K
  • Colour wheel: virtual colour wheel with presets
  • Macros: built-in white presets

DYNAMIC EFFECTS

  • Static colour mode: selection of static colour
  • Manual colour mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment

BODY

  • Body: sturdy die-cast aluminium body conceived for long-time durability
  • Body colour: black

CONTROL

  • Protocols: DMX512, W-DMX
  • DMX channels: 4 / 6 / 10 / 32 / 37channel
  • Pixel control: pixel2pixel control
  • W-DMX: included, wireless solution receiver
  • Display: black OLED touch display
  • Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
  • Master/Slave: for synchronized operation of more units linked in a chain

ELECTRONICS

  • Dimmer: linear 0~100% electronic dimmer
  • Dimmer curves: 4 different dimming curves available
  • Strobe / shutter: 1-25 Hz, electronic
  • Operating temperature: 0° ~ +35°
  • Flicker: flicker free operation

ELECTRICAL

  • Power supply: 100-240V – 50/60Hz

BATTERY

  • Battery: 14,8V lithium
  • Estimated battery life in colour change mode up to: 16h
  • Estimated battery life in single colour mode up to: R – 16h, G – 12.5h, B – 13h, W – 13h
  • Estimated battery life in full-mode up to: 6h
  • Re-charge connection: power cable
  • Re-charge time: 5h/max
  • Battery status: shown on display

PHYSICAL

  • Cooling: natural cooling of the peculiar chassis and the absence of fans
  • Suspension and fixing: hanging bracket suitable for safe hanging and positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Data connection: W-DMX OEM TRX
  • Power connection: Seetronic powerKon waterproof IN/OUT connectors
  • IP rating: IP65 (front) – IP54 (bottom)
  • Dimensions (WxHxD): 800x153x216mm
  • Weight: 10kg


MUSBAT200 - z8 strip datasheet.pdf    825.98 KB
