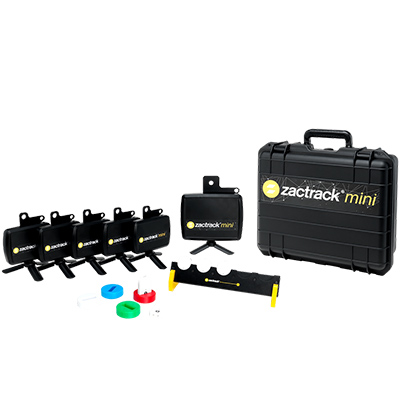

Zactrack Mini Package

The latest product to the zactrack portfolio, zactrack mini is now ready for action. Your newest tracking solution now comes in a briefcase sized case for easy transport and deployment by one person! zactrack mini embraces the core zactrack values and puts this tracking solution in a smaller form factor with battery operated components and wireless connectivity for an even faster and easier setup. The user experience is at the heart of zactrack mini.

Description

Smaller venues, exhibitions stands, individual performers, rental companies, House of Worship are only a small number of the broad applications for our new smaller friend. With this new system helping to introduce tracking to new users and smaller spaces, zactrack mini will also be a more economically viable solution for many users too. Tracking and following is now opened up for any application, designer or performer to embrace and use.

zactrack mini can be physically setup in minutes. A Master Anchor forms the nucleus of the zactrack mini infrastructure. This Master Anchor is of course an Antenna. But, additionally it is the zactrack Server, also the wireless access point and it’s even a DMX Node! Yes, zactrack mini can output DMX directly to fixtures with XLR cable. This concept of the Master Anchor having four uses in one box already simplifies the system for the user and removes the need for additional hardware previously needed such as the wireless access point, DMX Node and network switches.

Five smaller Anchors complete the deployed Antenna array or cell, giving us a tracking or performance area of 15 x 15 metres. zactrack mini gives us 2.5D tracking, so the Z height is achieved with using height offset – easy to use instantly on the Android tablet or on a console fader! To help with Anchor deployment and positioning, your zactrack mini kit includes small tripods that secure directly onto the Anchor housing.

The 5 trackers included in a zactrack mini Kit are used on your stage floor for fixture alignment (tracker calibration discs and charging station included too) – The Plug and Play nature of the zactrack SMART system is continued into

zactrack mini. USB-C Chargers are also included in a zactrack mini Kit for all components, most importantly those have replaceable multi-region plugs in the kit too. Now you can take your portable, battery powered tracking solution anywhere in the world and get straight to work!

zactrack mini can be used stand-alone or can be integrated to use with an industry standard lighting console, maintaining that hands-on creative control for the designer and operators.



● zactrack mini Master Anchor

   (incl. power supply)

– 4-in-1 uses – Master Anchor, Server,

  Wireless Access Point & DMX Node

– Up to 64 Fixtures

– 6.24 – 6.74 GHz UWB active radio antenna

– 190 x 207 x 36mm, 680g, IP50

– Neutrik etherCON RJ45, Neutrik XLR 5

  pole & USB-C – Port

– 3 hours battery life, 3 hours charging time (100%)

– Rig mounting plate for clamp and safety line



● zactrack mini Tracker

– 6.24 – 6.74 GHz UWB active radio emitter

– 35 x 60 x 10mm, 26g, IP65

– up to 5 active Trackers (16 Hz)

– up to 15 active Trackers (6 Hz Audio only)

– up to 60 inactive Trackers

– 4 hours battery life (active), 20 hours battery life      (inactive), 2 hours charging time (100%)



● zactrack mini Anchor

   (incl. power supply)

– 5 Anchors to mount around the stage

– 6.24 – 6.74 GHz UWB active radio antenna

– 140 x 140 x 35mm, 290g, IP54

– USB-C – Port

– 16 hours battery life, 2 hours charging time (100%)

– Rig mounting plate for clamp and safety line



● zactrack mini Charging station

   (incl. USB-C cable)

– Charging station for Trackers (5 slots)

– 270 x 70 x 70mm, 390g

– USB-C – Port
