Astra Wash 7Pix

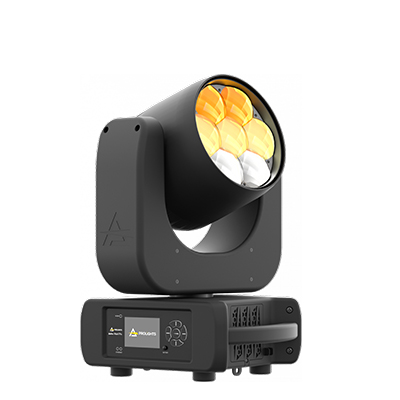

Astra Wash7Pix is a 7x40W RGBW moving wash light with 4°-56° zoom and pixel control.

Description

Despite its small size, it comes with an extensive feature set which can typically only be found on bigger luminaires. Based on a 40W Osram RGBW LED light source, the unit features an extremely high-efficient optical system capable of zooming from 4° to 56°, making it extremely versatile for any application as beam or wash light. Astra Wash7Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.



Product Features:

  • Compact form factor and fast movements
  • Zoom from 4° to 56° with high optical efficiency
  • Pixel control, precise white CCT and multiple FXs and colour features

LIGHT SOURCE

  • Source: 7x40W RGBW Osram Ostar LEDs
  • Luminous flux: (4°) 2’013 lm – (56°) 3’543lm @full
  • Lux: (4°) 18’360 lx – (56°) 364lx @5 m full
  • Source life expectancy: > 50.000 h

OPTICS

  • Zoom: 4° – 56° motorised linear zoom
  • Lens type: honeycomb gapless plano-convex optics

COLOUR SYSTEM

  • Colour mixing: RGBW / FC
  • CCT: CCT control, + / – green correction, tungsten emulation
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

  • Control Resolution: 16-bit dimmer
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan angle: 540°
  • Tilt angle: 233°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: RAL 9004

CONTROL

  • Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
  • DMX channels: main personality 24 / 27 / 39channel
  • Pixel control: OFF, ring and pixel2pixel selectable options
  • Wireless Control: included, Wireless Solution transceiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX2) not included

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V – 50/60Hz
  • Max power consumption: 225W
  • Output (at 230V): up to 13 units on a single power line
  • Power factor: > 0,93

PHYSICAL

  • IP rating: 20
  • Cooling: forced air with fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Neutrik Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 279x391x205mm / 10.98”x15.39”x8.07”
  • Weight: 8,1kg / 17.86lbs

CERTIFICATIONS / APPROVALS

  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

  • 1 x ASTRAWASH7PIX
  • 1 x 1,5 meters power cable (BARE END – NEUTRIK POWERCON TRUE1 IP65)
  • 1 x OS24
  • User Manual
