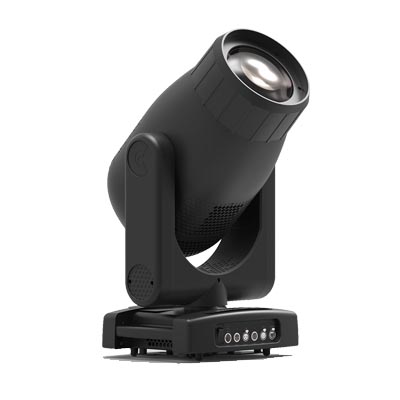

Axcor Wash 600

The Axcor Wash 600 is a versatile light, which further enhances the AXCOR LED moving head range and naturally complements the Axcor Profile 600.

The Axcor Wash 600 comes in two versions:

Axcor Wash 600 (CLPLED605): 6500 K, CRI=70

Axcor Wash 600 HC (CLPLED606): 5600 K, CRI=90



Description

It comes both in a standard version and in one with a different LED engine, designed to achieve CRI values of at least 90. The Axcor Wash 600 has a very wide beam angle range: the 5° narrow beam produces dense aerial effects, thanks also to its exceptional front lens of over 200mm in diameter. With its 55° wide beam angle, this wash light is also ideal for use in theatrical and television environments. The fixture is available with PC (standard), Fresnel or Clear lenses. The three types are interchangeable and can be purchased separately. The Axcor Wash 600 fits a four-blade framing system, working with any lens type you choose. The colour is produced by a professional system in keeping with the Axcor Profile 600. It includes CMY colour mixing, a linear CTO, and two overlapping colour wheels with five colours each.

  • Source: 500W white LED engine
  • Versions available:
  • – CRI: at least 70, CT 6500K (Axcor Wash 600)
  • – CRI: at least 90, CT 5600K (Axcor Wash 600 HC)
  • Ø 200mm (almost 5 inch) front lens
  • 5°- 55° linear zoom
  • CMY + linear CTO
  • Two overlapping colour wheels with 5 colours each
  • Motorized framing system, which operates over the entire zoom range
  • Framing system, indexable over 90 degrees
  • Electronic linear dimmer, 16 bit with 4 curves
  • Electronic strobe @25 f/sec
  • Available with PC, fresnel or clear lenses



POWER SUPPLIES
AC power input 100-240V, 50/60 Hz.

INPUT POWER
800 VA @230Vac – 50Hz.

LIGHT SOURCE
Source: 500W white LED engine
L70 20000hrs.
– CRI: at least 70, CT 6500K (Axcor Wash 600)
– CRI: at least 90, CT 5600K (Axcor Wash 600 HC)

OPTICS
Zoom 4°- 48° (standard), linear and motorized.
Zoom 5°- 47° (with Fresnel lens kit) linear and motorized.

COLOUR SYSTEM
CMY Color Mixing
Linear CTO.
Two overlapping color wheels with 5 colors each.

FRAMING SYSTEM
Motorized framing system, which operates over the entire zoom range.
Framing system, indexable over 90 degrees.
Smooth, flexible blade movements at variable speed.

EFFECTS SECTION
Pan/Tilt Resolution 16 bit. Electronic linear dimmer, 16 bit with 4 curves.
Focus Resolution 16 bit.
Electronic strobe @25 f/sec.
Movement control vectorial..

CONTROL AND PROGRAMMING
26/30 DMX control channels.
inputs: DMX 512 – Art-Net
Control signal USITT DMX 512
Protocols RDM, WebServer and Art-Net
Neutrik PowerCon True1 (IN). Display Graphic LCD backlit b/w Display
Display battery Long life self-charging buffer battery
Pan/Tilt Resolution 16 bit
Focus Resolution 16 bit
Dimmer Resolution 16 bit
Movement control vectorial
DMX signal connection 3 or 5 pole XLR input and output
Ethernet Input
Firmware update Software upload through DMX/Ethernet input

BODY
Aluminum and steel structure with plastic covers.
Two side handles for transportation.
Device locking PAN and TILT mechanisms for transportation and maintenance.

MOVING BODY
PAN range 540°.
TILT range 251°.

ELECTRONICS
Control signal USITT DMX 512.
Long life self-charging battery.
Display Graphic LCD backlit b/w Display.
Function reset via on-board menu.
Function reset from the lighting desk.
“AUTOTEST” function from menu.
Electronic monitoring with status error reporting and logging.
Cooling system monitoring.
DMX level monitoring on all channels.
Internal data transmission diagnostics.
Upgrade with no power (CPU only) firmware
Firmware upload from another fixture (CPU only).
Firmware Upgrade via Web Server.
Protocols/Functions: RDM, Web Server, ArtNet.

SAFETY DEVICES
Minimum distance of illuminated objects 4 meters (13’ 12”).
Minimum distance from flammable materials 0.2 meters (8”).
Max ambient temperature 40°C (104°F).
Max temperature of the external surface 90°C (194°F).
Safety devices circuit breaker with thermal protection.
Thermally protected power supply (overheating and cooling failure)..
Forced ventilation with axial fans.

WORKING POSITION
Working in any position.
Hanging system: with fast-lock omega clamps (1/4 turn) on the base.
Optional safety chain (105041/001)

CE MARKING
In conformity with the European Directives:
2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD).
2014/30/EU – Electromagnetic Compatibility (EMC).
2011/65/EU – Restriction of the use of certain hazardous substances (RoHS).
2009/125/EC – EcoDesign requirements for Energy-related Products (ErP).

ETL
This product is available, on demand, with cETLus Listed Mark.

WEIGHT
Axcor Wash 600 with PC lens: 33.9 Kg (74.7 lbs)
Axcor Wash 600 with Fresnel lens: 32.9 Kg (72.5 lbs)

DIMENSIONS

409mm x 330mm x 817mm (16.1” x 13.0” x 32.2”)
