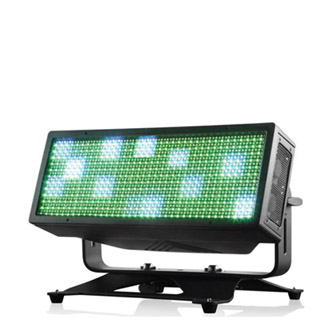

Collider FC Strobe

An IP65 rated RGBW pixel-mappable LED strobe with 48 individually controllable segments for dynamic effects and visuals.

Description

  • 48 individually controllable segments for dynamic effects and visuals
  • Two-layer foreground and background colours and effects
  • Stunning selection of pre-programmed macros and special effects
  • IP65-rated tour-grade construction
  • White colour temps from 2700K ~ 8000K
  • Doubles as an LED blinder in continuous mode
  • Continuous operation possible due to advanced thermal design
  • Display invert & auto-off, menu key lock
  • D-MX, RDM and Artnet control

Lamp Source: 1728 x 1W RGBW LEDs
Power Supply: 100-240V AC, 50/60 Hz
Power Consumption: 1500W (Instant) / 589W (Continuous)
DMX Connection: IP65 5-pin XLR In/Out & ArtNet In/Out
DMX Channels: 3 / 4-1 / 4-2 / 6 / 7 / 8 / 14 / 144 / 192 / 202
Beam Angle: 98°
Output: 180,000 lm
Dimensions: 468 (L) x 179 (W) x 268 (H) mm
Weight: 15kg



ek lights@collider fc.xml    214.11 KB
EK_Lights@Collider_FC@1.00.gdtf    258.16 KB
LEDSTR100 - Collider FC Datasheet.pdf    1.79 MB
LEDSTR100 - Collider FC Manual 1.0 - 1.22 Firmware.pdf    936.58 KB
LEDSTR100 - Collider FC Manual 1.3+ Firmware.pdf    1.14 MB
LEDSTR100 - Collider FC Manual.pdf    11.1 MB
LEDSTR100 Collider FC 1.0-1.22 Firmware GMA2&3 Fixure Profiles.zip    68.02 KB
LEDSTR100 Collider FC 1.3+ Firmware GMA2&3 Fixure Profiles.zip    83.99 KB
