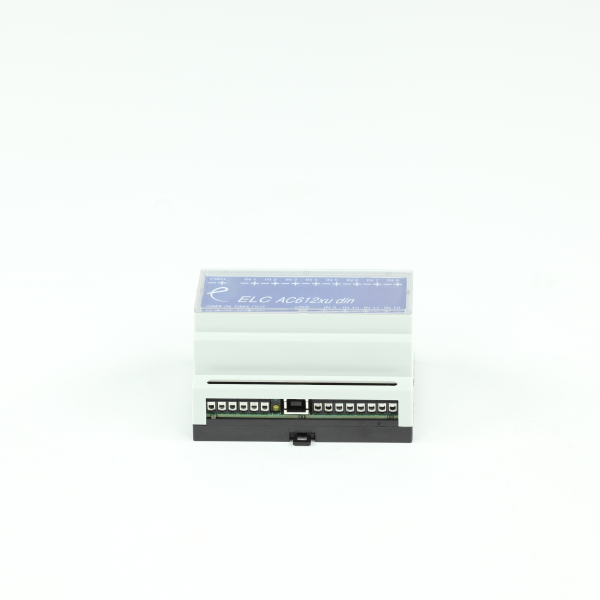

DMX Scene Player in DIN cabinet (AC612DIN)

Categories: , , , SKU: ELCCON023 Tag:

Based on the AC612 XUB 12-memory push-button unit, this DIN-rail mounted version has contact closure terminals for each memory/chase making it ideal for system integration.



Description

 A USB connection is provided for programming, and the versatile design incorporates a programmable DMX merger.

  • Captures data from DMX data signal
  • 12 Memories of 512 DMX channels, individually recalled by contact closures
  • Each memory can be a scene or a chase (total desk capacity is 126 chase steps)
  • Stores chaser step length and times
  • DIN rail mounted
  • Hardwired connections for keyboard functions
  • Allows custom buttons and switches for system integration projects
  • AC612 editor freeware provides programming functions
LeafletAC612DIN.pdf 305.98 KB
