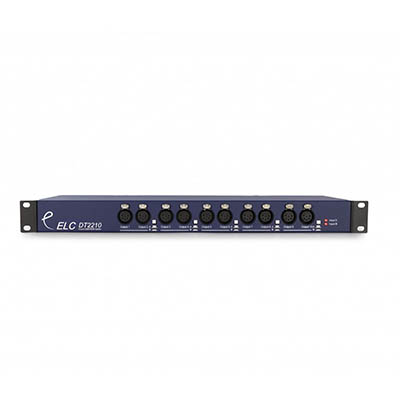

DMX Splitter 2 in 10 Out Fully Isolated
The DMX Splitter 2 in 10 out fully isolated is a 19” rackmount DMX splitter supporting the bidirectional extension to the DMX protocol to accommodate Remote Device Management (RDM).
The DMX Splitter 2 in 10 out fully isolated is used in larger DMX networks where more than simple daisy-chain connections between multiple DMX devices (to a maximum of 32 devices) are needed. The DMX Splitter 2 in 10 out fully isolatedr (hub) boosts the signal to create a ‘star’ network of 10 additional DMX lines from a choice of two DMX inputs. Outputs are grouped in pairs that can be selected to input A or B by pressing the adjacent panel push button. All outputs are fully galvanic-isolated.
Downloads
Manuals
Datasheets
Related Products
-
The dmXLAN switchGBx 10 has been specifically designed for live entertainment applications where a mixture of data protocols would overload and saturate commercially-available network switches. The ELC switches forms the backbone of the network distribution system. Easily create virtual networks for specific applications, like sound, video, lighting etc. Setup fast redundant loops with fault reporting. 8 Ethernet ports with speed up to 1GB, and 2 SFP cages for fiberoptic capable of speeds up to 2.5Gbps. The ethernet ports on the front panel support PoE and a RGB LED to indicate the status and the programmed VLAN. Easy programming on local colour touch screen or remotely with our dmXLAN V4 software. Features: Real-time backup loops Local colour touch screen and rotary encoder 4 1Gbps Network Ports with PoE (802.3af-2003 Standard) on the front with RGB LED 4 1Gbps Network Ports on the rear 2 SFP cages for Fiber Optic modules up to 2.5 Gbps Supported by dmXLAN V4 software Partition of the network into separate VLANs DANTE Compatible Can act as master for the dmXLAN nodeGBx 8 Read more -
This new version of our popular AC612 range stores 5 scenes of 512 DMX channels from the DMX input. You can recall them with a fader.A master fader ( UP / DOWN buttons) allows the control of all the scenes from 0% to 200%. USB port allows firmware upgrade for future added functions. With the latest version 1.1 and Editor Software it now supports up to 10 steps / scenes per fader. Read more -
-
The dmXLAN buddy is a 2-port DMX – Ethernet node that supports Art-Net / sACN / Strand shownet and is fully supported by the dmXLAN software. Power over USB port Supports sACN, Art-Net & Shownet Ports can act as input or output Simple programming through specific software application (Buddy Setup) Compatible with dmXLAN v4 software as any ELC dmXLAN node The Integrated web page will convert the device into a simple DMX controller – just like the famous ELC focusHAND remote. Read more
