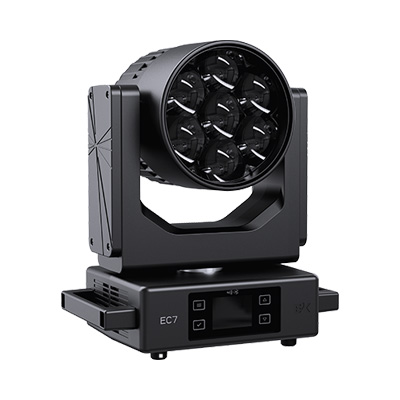

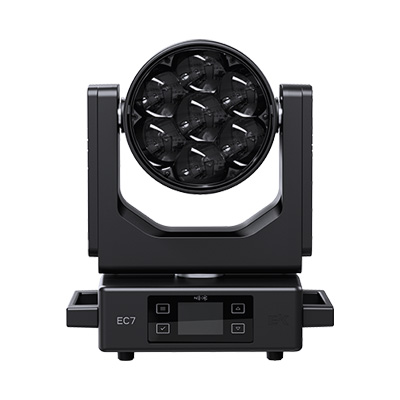

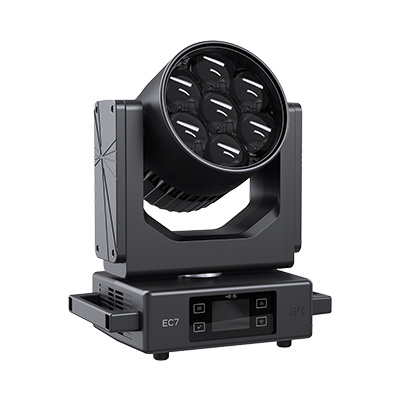

EC7 Wash

Redefining efficiency, the EC7 delivers twice the output of its predecessor while maintaining the same power draw.

Send an enquiry

Description

Its advanced RGB+WW system ensures both vibrant colours and superior CRI, all packed into a compact, lightweight design that outperforms larger fixtures in its class.

Discover true colour freedom

  • 7*50W RGBWW
  • Up to 7800 lumens output
  • Complete spectrum: Saturated primary colours offer a wider range of colour choices

Twice the output at the same size

  • Ultra compact at 9.7kg; superior weight-to-output ratio satisfies any critical considerations on size and power
  • Wide zoom ranging from 3.8° – 51.2°, ideal for both tight beams for long throws and wide coverage for short throws

Built for professionals

  • DMX512/RDM/sACN/Artnet/Bluetooth/APP/NFC

PHOTOMETRICS

  • Light Source: 7*50W RGBWW LED
  • Output: Up to 7,800 Lm
  • CRI: >93
  • Colour Temperature: 2800K – 10000K
  • LED Life: 30,000 hours

KEY FEATURES

  • PAN: 540°
  • TILT: 247°
  • Colour System: RGBWW
  • Zoom: Beam angle 3.8° – 33.8°. Field angle 5.5° – 51.2°
  • Strobe: 1 – 30Hz
  • Dimming: 0 – 100% linear adjustable

CONTROL

  • Protocol: DMX512/RDM/sACN/Artnet/Bluetooth/APP/NFC
  • Data Connections: 3pin or 5 pin DMX In/Out Art-net In/Out
  • DMX Channel: 16/34/31CH + 28CH
  • Display: 2.8 inch TFT display
  • Frequency: 600Hz/1.2KHz/2KHz/4KHz/6KHz/25KHz
  • Built-in Programs: Yes
  • Pixel Control: Single control

POWER

  • Mains: 100 – 240V, 50/60Hz
  • Power Connections: PowerCon In/Out
  • Maximum Power Connections: Linking up to 4pcs in a chain
  • Data Connections: DMX In/Out
  • Maximum Data Connections: Linking up to 32pcs
  • Consumption: 230V @ 400W
  • Power Factor: 230V @ 0.97
  • Ambient: -10°C – 45°C

PHYSICAL

  • Dimension: 323 x 207 x 381mm
  • Weight: 9.7kg
  • IP Rating: IP20
  • Cooling: Heat sink with noiseless fan
  • Housing: Flame-retardent nylon+fiber
  • Installation: Floor mounting, side hanging and flown mounting
