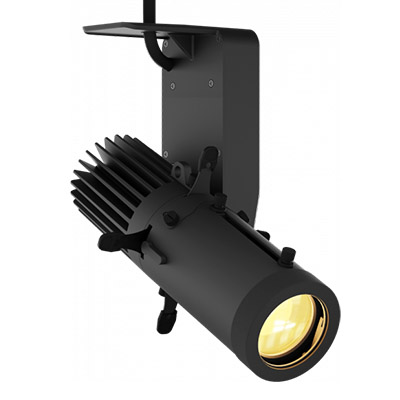

EclDisplay CC black

EclDisplay 25W 2700K constant current Black is a revolutionary and flexible LED spotlight designed for galleries, commercials and any public venue where an advanced but classy fixture, with several control options, sources and optic versions available to precisely meet any application.

Description

The EclDisplay CC is the version of the EclDisplay range made to be connected to an external Constant Current PSU and driver (max 700mA/36V), selecting among the PROLIGHTS accessories or any third-party compatible component, leaving to System Integrators to install this luminaire in venues with their own wiring distribution and control.

Also available in the following versions:

Code: MUSDIS205 EclDisplay CC 2700K White

Code: MUSDIS214 EclDisplay CC 3000K Black

Code: MUSDIS215 EclDisplay CC 3000K White

Code: MUSDIS224 EclDisplay CC 4000K Black

Code: MUSDIS225 EclDisplay CC 4000K White

Code: MUSDIS234 EclDisplay CC 5600K Black

Code: MUSDIS235 EclDisplay CC 5600K White



Features:

  • Constant Current version to be connected to external PSU and driver (max 700mA/36V)
  • 25W high CRI White LED
  • Multiple lens options: zoomable profile or wash optics (15-30, 25-50, 20-40)

LIGHT SOURCE
  • Source: 25W White COB LED
  • Luminous flux: (2800K – 17°) 1498 lm – (2800K – 36°) 1586 lm @full
  • Lux: (2800K – 17°) 825 lx – (2800K – 36°) 221 lx  @5 m full
  • CRI: 90.5 @2800K
  • TLCI: 87 @2800K; 88
  • TM30 Rf: > 89 @2.800K
  • TM30 Rg: < 101 @2.800K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

  • Zoom: (wash lens – optional) 15° ~ 30° or 25° ~ 50° – (profile lens – optional) 20° ~ 40°
  • Other: 360° lens rotation – optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens) shutter blades lockable
  • Other: (profile lens – optional) manual rotating gobo holder size E, outer: 37 mm – image: 23 mm – thickness: max 3 mm

BODY

  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9010
  • Other: cable not included – Cable diameter range: 6 – 10 mm

ELECTRICAL

  • Constant Current mains: max 700mA/36V
  • Max power consumption: 25W

PHYSICAL

  • Operating Temperature: -10° ~ +45°
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: screw terminal blocks
  • Dimensions (WxHxD): 124X200x115.5mm / 4.88”x4.55”
  • Weight: 1,15kg / 2.54lbs


Ecldisplaycc27kb_A4_DATASHEET.pdf    3.67 MB
