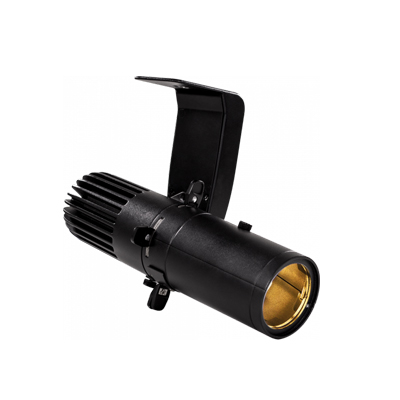

Mini Profile W-DMX Black

The Mini Profile W-DMX Black is a new concept of mini LED ellipsoidal. Showcasing a stylish design, ease of use, precise optics, sharp image projection and bright even projection all in a compact housing that is just a quarter of the size of traditional ellipsoidals.

Description

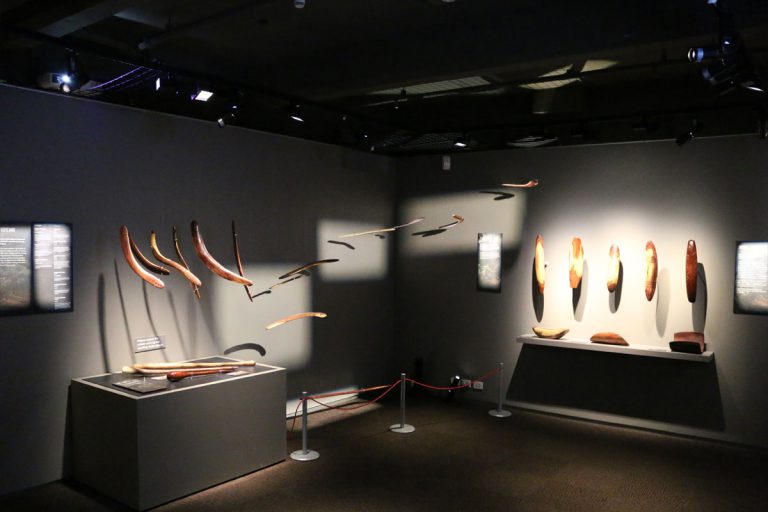

Mini Profile W-DMX Black comes with a built-in Wireless DMX (WDMX) module for cable-free operation, extending the possible applications of this light. Designed for applications in commercial installations, museums, restaurant, churches, educational theatres, and any other installation where size is an important factor. The Mini  Profile W-DMX performs even field projection, high CRI at any level of brightness and linear dimmer over the entire ramp.

Features include:

  • Bright, Compact LED Ellipsoidal with sharp optics and wireless DMX control.
  •  High CRI LED sources.
  • 19°, 26°, 36° and 50° lens options.



LIGHT SOURCE

  • Source: 28W CREE LED
  • CT: TU 3100 K
  • CRI: TU 93
  • Luminous flux: TU 612 lm @3m 19°
  • Lux: TU 880 lux
  • Source life expectancy: >50.000 h



OPTICS

  • Beam angle: optional 19° / 26° / 36° / 50°
  • Lens type: high-quality glass lens optics



DYNAMIC EFFECTS

  • Fixed gobos: Gobo Holder Included in optics
  • Gobo size: E size, gobo Ø 37.5 mm – img Ø 24 mm – thickness 0.5 mm
  • Static colour mode: selection of static colour
  • Manual colour mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment



BODY

  • Body: sturdy die-cast aluminium body conceived for long-time durability
  • Body colour: black



CONTROL

  • Protocols: W-DMX
  • DMX channels: 1 / 2 / 5channel
  • W-DMX: included, wireless solution receiver
  • Display: LCD display
  • Firmware upgrade:



ELECTRONICS

  • Dimmer: linear 0~100% electronic dimmer
  • Dimmer curves: 4 different dimming curves available
  • Strobe / shutter: 1-25 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • Flicker: flicker free operation
  • Selectable PWM: 600~25K Hz



ELECTRICAL

  • Power supply: 100-240V – 50/60Hz
  • Power consumption (at 230V): 29W





PHYSICAL

  • Cooling: natural cooling of the peculiar chassis and to absence of fans
  • Power connection: moulded IP power IN connector
  • IP rating: 20
  • Dimensions (WxHxD): 112x202x226mm
  • Weight: 1.5kg


MUSGAL211 LED mini eclipse 3100k profile WDMX Manual.pdf    6.47 MB
