EclDisplay UNWhite

Categories: , , , , SKU: MUSDIS231

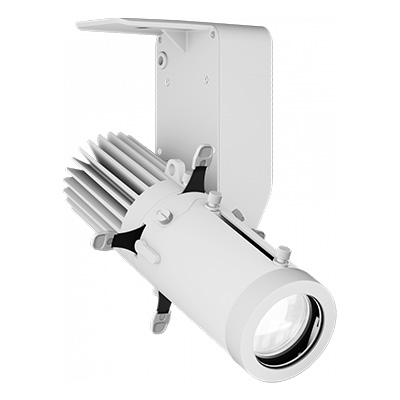

EclDisplay 25W 5600K Universal Control White  is a revolutionary and flexible LED spotlight designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application.

Description

The EclDisplay UN can be set and addressed through RDM, and includes a broad set of on-board input control options: DMX, DALI Type 6, phase-cut dimming or local knob dimming control. The EclDisplay UN includes a high-efficiency 25W White, high CRI LED source and it is completed with a wide selection of optional zoomable profile or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.

Also available in the following versions:

Code: MUSDIS200 EclDisplay Universal Control 2700K black

Code: MUSDIS210 EclDisplay Universal Control 3000K Black

Code: MUSDIS211 EclDisplay Universal Control 3000K White

Code: MUSDIS220 EclDisplay Universal Control 4000K Black

Code: MUSDIS221 EclDisplay Universal Control 4000K White

Code: MUSDIS230 EclDisplay Universal Control 5600K Black

Code: MUSDIS231 EclDisplay Universal Control 5600K White

Features:

  • Universal control through RDM, DMX, DALI Type 6, phase-cut dimming and local knob dimming
  • 25W high CRI White LED
  • Multiple lens options: zoomable profile or wash optics (15-30, 25-50, 20-40)

LIGHT SOURCE
  • Source: 25W White COB LED
  • Luminous flux:(5600K – 36°) 1869 lm @ full
  • Lux:(5600 K – 17°) 964 lx – (5600K – 36°) 256lx @5 m full
  • CRI: 90.5 @5600K
  • TLCI:93 @5600K
  • TM30 Rf: > 88 @5600K
  • TM30 Rg:< 101 @5600K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

  • Zoom: (wash lens – optional) 15° ~ 30° or 25° ~ 50° – (profile lens – optional) 20° ~ 40°
  • Other: 360° lens rotation – optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens) shutter blades lockable
  • Other: (profile lens – optional) manual rotating gobo holder size E, outer: 37 mm – image: 23 mm – thickness: max 3 mm

DYNAMIC EFFECTS

  • Control Resolution: 16bit dimmer
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment

BODY

  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9010
  • Other: cable not included – Cable diameter range: 6 – 10 mm

CONTROL

  • Protocols: Local Knob, DMX, DALI Type6, RDM
  • DMX channels: 1 / 2 / 3 / 4channel
  • RDM: RDM for remote monitoring and settings
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V – 50/60Hz
  • Max power consumption: 33W
  • Power factor: > 0,95

PHYSICAL

  • Operating Temperature: -10° ~ +45°
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: screw terminal blocks
  • Power connection: screw terminal blocks
  • Dimensions (WxHxD): 141X200x115.5mm / 5.55”x4.55”
  • Weight: 1,4kg / 3.09lbs


EclDisplay universal control datasheet.pdf    3.73 MB
