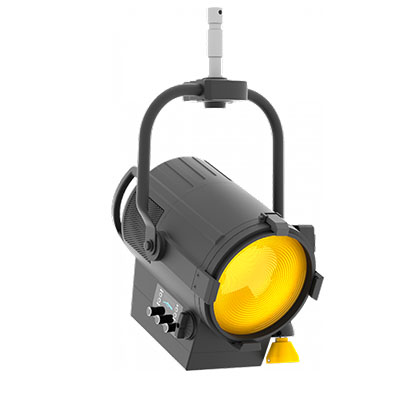

EclFresnel PTW

LIGHT SOURCE

• Source: 260W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
• CCT: 2800 K -10000K
• CRI: > 95
• R9: > 90
• Luminous flux: 7’938lm
• Lux: (15°) 6’517 lx – (45°) 930lx @3 m full
• Source life expectancy: > 50.000 h

OPTICS

• Zoom: 15° – 45° manual
• Field angle: 29° – 67°
• Lens diameter: 8” – 200mm / 0.31”
• Lens type: Fresnel zoom lens
• Focus: manual

COLOUR SYSTEM

• Colour mixing:CTC: CTC control through independent DMX channel, + / – green and magenta correction and amber shift activation by DMX
• White presets: 2.800 K -10.000K
• Colour wheel: a virtual colour wheel with presets
• Macros: several pre-build macros with adjustable speed

DYNAMIC EFFECTS

• Static colour mode: a selection of static colour
• Manual colour mode: manual adjustment of intensity, CT, colour correction from knob
• Auto mode: built-in programs with execution speed adjustment
• Special features: linear crossfade from a white to any colour and CTO applied on colours

BODY

• Hardware on-board: included filter frame, 8 doors barndoor, omega bracket spigot
• Pan angle: 360° with manual regulation
• Tilt angle: 340° with manual regulation
• Body: sturdy die-cast aluminium body conceived for long-time durability
• Body colour: black

CONTROL

• Protocols: DMX512, RDM, local knob
• DMX channels: 1 / 2 / 5 – 1 / 5 – 2 / 7 / 9 / 12 / 13 / 16 / 19 / 21channel
• RDM: RDM ready for fixture remote monitor and settings
• Display: black OLED high resolution display
• Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
• Other: 16bit control of dimmer and colour

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 different dimming curves available
• Strobe / shutter: 1 – 30 Hz, electronic
• Operating temperature: -10° ~ +45°
• Flicker: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Power supply: 100-240 V – 50/60 Hz
• Power consumption (at 230 V): 260W
• Power consumption (at 120 V): 260W
• Output (at 230 V): 11 units on a single power line
• Output (at 120 V): 6 units on a single power line

PHYSICAL

• Cooling: a combination of heat pipe cooling system and low noise fan
• Suspension and fixing: hanging bracket suitable for safe hanging and positioning
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
• IP rating: 20
• Dimensions (WxHxD): 341x545x343mm / 13.43”x21.46”x13.5”
• Weight: 9,2kg / 20.28lbs
