EclPar IPMFC

Categories: , , , , , , SKU: MUSPAR155

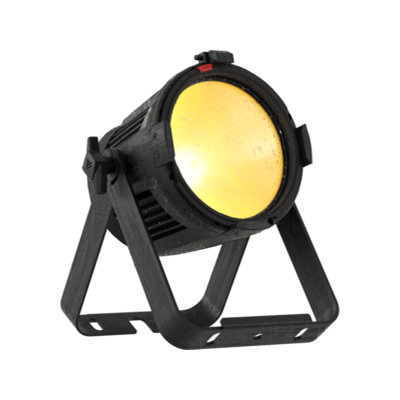

EclPar IPMFC is a flexible IP rated single source LED spotlight, featuring an 100W RGB+WarmWhite light source with high efficiency and advanced colour control.

Enquiry about EclPar IPMFC

Enter the security code shown above

Description

Its Spektra calibrated LED source delivers a high-quality white reproduction with high CRI and TM30 with an advanced control over colours, ensuring consistency across fixtures.
The unit is compact and completely fan free, making the EclPar IPMFC a workhorse for any outdoor and dusty environment, corporate events or studios where silent operations are required.
The flexible optical system allow a wide selection of lenses from narrow 15° (on board), flood 30°, and ultra wide 60°, which can be quickly mounted in front of the luminaire or inside the front tempered glass for lasting exterior installation.

Product Features:

  • 100W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
  • Flex lens system: 15° on-board – 30° and 60° optional
  • IP65 for exterior application, fan free

LIGHT SOURCE

  • Source: 100W COB RGB+WW LED
  • Luminous flux: (15°) 3’324 lm; (30°) 3’453lm @full
  • Lux: (15°) 1’772 lx; (30°) 387lx @5 m full
  • CRI: 93,7 @3’200K; 91,1 @5’600K
  • R9: 89 @3’200K; 88 @5’600K
  • TLCI: 77 @3’200K; 86 @5’600K
  • TM30 Rf: 90 @3’200K; 89 @5’600K
  • TM30 Rg: 109 @3’200K; 108 @5’600K
  • Source life expectancy: > 50.000 h

OPTICS

  • Beam angle: (on-board) 15° – (opt) 30°, 60°
  • Field angle: (on-board) 26°
  • Lens diameter: 172mm / 6.77”
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: (opt) 30°, 60°
  • Other: possible to mount lens both on the internal side and on the external side

COLOUR SYSTEM

  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / – green correction, tungsten emulation
  • White presets: 2.700 K ~ 10.000K
  • Macros: Gels library on-board

DYNAMIC EFFECTS

  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

  • Body: sturdy die-cast aluminium body
  • Body colour: black
  • Other: Front mount holder for accessories as barn door, filter frame

CONTROL

  • Protocols: DMX512, RDM, CRMX
  • DMX channels: 1 / 2 / 5 / 9 / 10 / 12 / 18channel
  • Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 40.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V – 50/60Hz
  • Max power consumption: 120W
  • Output (at 230V): 24 units on a single power line
  • Power factor: > 0,94

PHYSICAL

  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 262x327x213mm / 10.31”x12.87”x8.39”
  • Weight: 4,1kg / 9.04lbs
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

CERTIFICATIONS / APPROVALS

  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

  • 1 x ECLPARIPMFC
  • 1 x EPIPMLENS15
  • 1 x ECLPARTPG
  • 1 x 1,5 meters power cable (BARE END – SEETRONIC IP65 power connector)
  • 1 x User Manual


MUSPAR155 EclPar IPMFC datasheet.pdf    515.4 KB

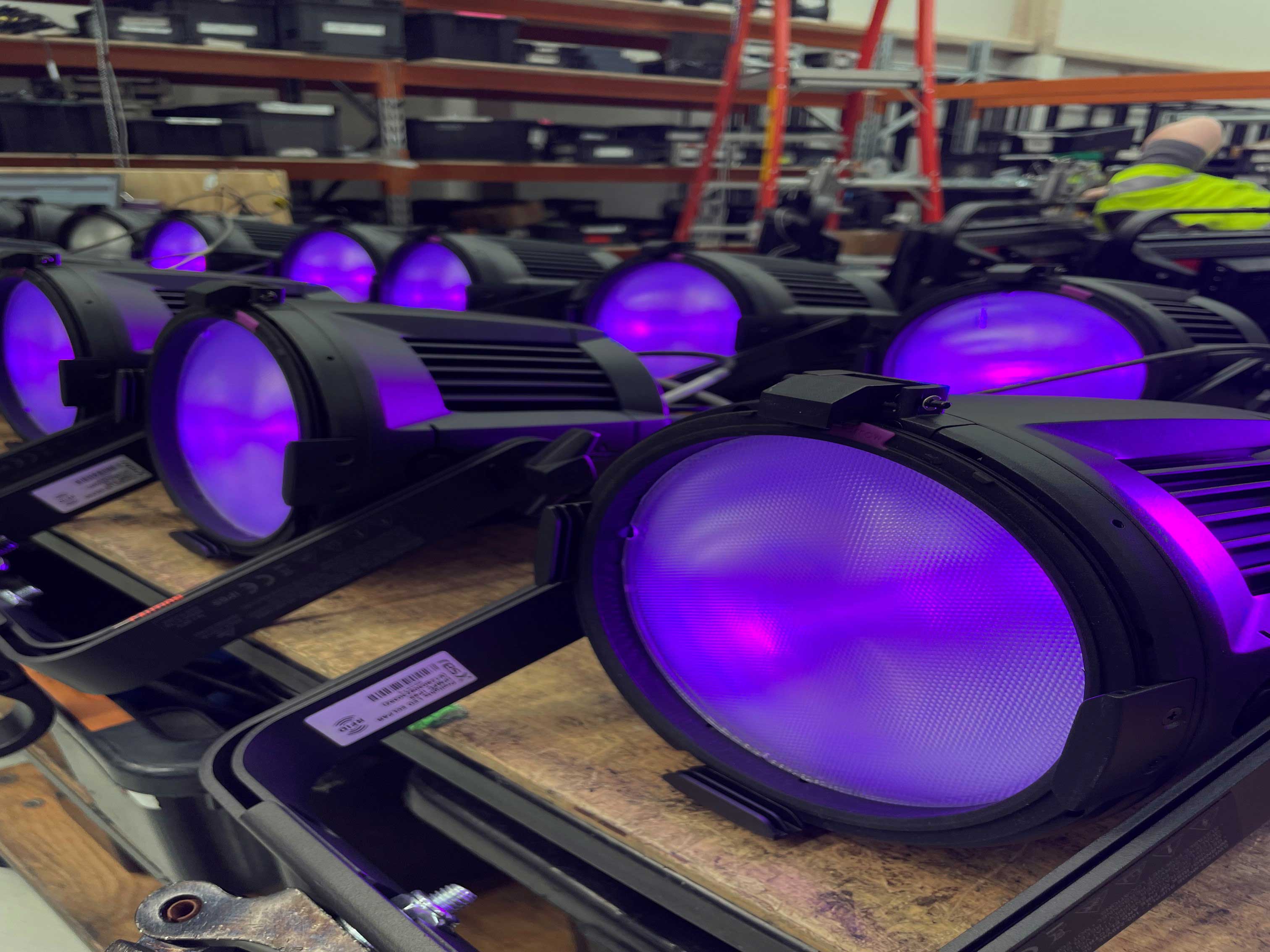

Prolights EclPar Impress at Resolution X
