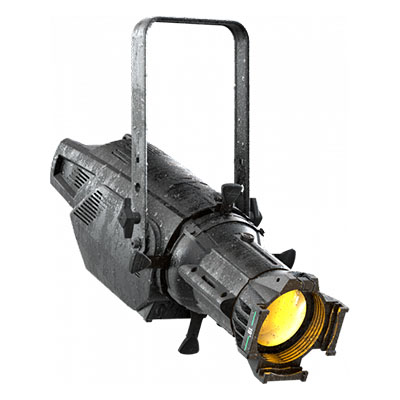

EclProfile CT PLUS IP

Waterproofed high quality six colours LED ellipsoidal, Tunable White and colour mixing

Description

The EclProfile CT+IP is a tunable white and full colour IP LED ellipsoidal designed for exterior applications such as touring, theme parks, cruise ships, and any outdoor events.
It uses the same 6-colour LED source than its indoor version, but with a 30% higher lumen output, as it’s equipped with a bigger power-supply and heat sink. The IP body of the fixtures takes any of the standard lenses and accessories of the EclProfile range. Its custom LED array and the powerful on-board colour control allows reaching bright and high-quality whites, up to 97 CRI, keeping a consistent colour output and ensuring a total control of the light. The wide feature set includes special theatrical functions such as tungsten emulation on dimming and colours, LEE colour presets, virtual CTO and studio functions, such as green and magenta tuning on white presets.

Features:

  • IP rated for exterior applications
  • Rotating gobo IP65 (optional)
  • Linear white CCT from 2,800K to 10,000K, CRI up to 96
  • Industry-standard colour gel matching, tungsten emulation on dimming, tint control (+/- green).

LIGHT SOURCE

  • Source: Luxeon-C; 96x3W 6 colour custom LEDs source (red, green, blue, royal blue, mint, pc amber)
  • CCT: @full 5.000K
  • Luminous flux: (5°) 3’805 lm; (10°) 4’790 lm; (14°) 5’047 lm; (19°) 5’380 lm; (26°) 6’681 lm; (36°) 6’814 lm; (50°) 5’773 lm; (70°) 7’430lm @full
  • Luminous flux: (zoom 15°-30°) (min angle) 5’290 lm; (max angle) 6’664 lm – (zoom 25°-50°) (min angle) 7’042 lm; (max angle) 9’817 @full
  • Lux: (5°) 14’638 lx; (10°) 8’663 lx; (14°) 3’812 lx; (19°) 2’530 lx; (26°) 1’759 lx; (36°) 810 lx; (50°) 474 lx; (70°) 306lx @5 m full
  • Lux: (zoom 15°-30°) (min angle) 3’502 lx; (max angle) 1’800 lx – (zoom 25°-50°) (min angle) 2’608 lx; (max angle) 974lx @5 m full
  • CRI: 93,7 @3.200 K; 97,6 @5.600 K
  • R9: 98,6 @3.200 K; 98,2 @5.600 K
  • TLCI: 95 @5.600 K
  • TM30 Rf: 92 @5.600 K
  • TM30 Rg: 100,1 @5.600 K
  • Source life expectancy: > 50.000 h

OPTICS

  • Lens type: high-quality glass lens optics
  • Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / zoom 15°-30° / zoom 25°-50°
  • Focus: manual
  • Other: see available accessories

COLOUR SYSTEM

  • Colour mixing: RGB, Royal Blue, Mint, PC Amber
  • CCT: CCT control, + / – green correction, tungsten emulation
  • White presets: 2.700 K ~ 10.000K
  • Colour wheel: colour gels matching and RGB / HSI / CMY selectable colour mode

DYNAMIC EFFECTS

  • Gobo size: B, outer: 86 mm – image: 64,5 mm – thickness: 1,1 mm
  • Special features: 4 fan modes available and output management and linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

  • Body: sturdy die-cast aluminium body
  • Body colour: black

CONTROL

  • Protocols: DMX512, RDM
  • Stand Alone: selection of static colours, white presets, manual colours and built-in effects with adjustable speed
  • DMX channels: UNO / DUO / Basic / Standard / Extended channel
  • RDM: RDM ready for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX2) not included (through dedicated software)
  • Master/Slave: for synchronized operation of more units linked in a chain

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 – 25 Hz, electronic
  • Operating temperature: -20° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V – 50/60Hz
  • Max power consumption: 264W
  • Output (at 230V): 7 units on a single power line
  • Power factor: > 0,95

PHYSICAL

  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 324x540x660mm / 12.76”x21.26”x25.98”
  • Weight: 10kg / 22.05lbs
