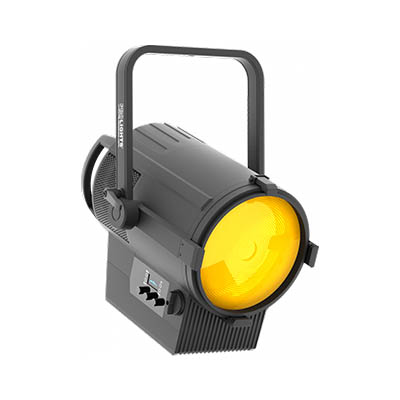

EclFresnel 2KTW

LED Fresnel FC and Tunable White with colour correction, to replace 2.000 W lamp.

Description

EclFresnel 2KTW is an advanced LED replacement of traditional 2.000 W Fresnel lamps. Offering 6 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and extensive colour reproduction.

The optical system harnesses the power of a 500 W custom LED with 6 colours to create an even projection, beautiful colours and precise whites, with the option to apply +/- green and magenta correction to match other light sources.

Featuring HD dimming and tuning from 2.800 K to 10.000 K, the EclFresnel 2KTW delivers both on performance and quality of output that is demanded from this level of light.

Features:

  • Tunable white 2.800 K – 10.000 K with high CRI and extensive colour mixing
  • +/- green and magenta white tuning
  • Truly silent operation making it perfect for studio and stage use

LIGHT SOURCE

  • Source: 500W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
  • CCT: 2.800 K – 10.000K
  • CRI: 89 @ 3200K
  • R9: 80 @ 3200K
  • Luminous flux: (17°) 10’100 – (52°) 13’400lm @full
  • Lux: (17°) 3’864 lx – (52°) 710lx @5 m full
  • Source life expectancy: > 70.000 h
  • Other: TM30: 89 @ 3200K – TLCI: 73 @ 3200K

OPTICS

  • Zoom: 17° – 52° half peak angle
  • Lens diameter: 250mm / 9.84”
  • Lens type: fresnel zoom lens
  • Other: spigot, barn door and gel frame included

COLOUR SYSTEM

  • Colour mixing: 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
  • CTC: CTC control through dedicated DMX channel, + / – green and magenta correction and amber shift activation by DMX
  • White presets: 2.800 K – 10.000K
  • Colour wheel: virtual colour wheel with presets
  • Macros: several pre-build macros with adjustable speed

DYNAMIC EFFECTS

  • Static colour mode: a selection of static colour
  • Manual colour mode: manual adjustment of intensity, CT, colour correction from knob
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade from a white to any colour and CTO applied on colours

BODY

  • Hardware on-board: included filter frame, 8 doors barndoor, spigot
  • Body: sturdy die-cast aluminium body conceived for long-time durability
  • Body colour: black

CONTROL

  • Protocols: DMX512, RDM, local knob
  • DMX channels: 1 / 2 / 5 – 1 / 5 – 2 / 7 – 1 / 7 – 2 / 8 / 9 / 12 / 13 / 16 / 19 / 21channel
  • RDM: RDM ready for fixture remote monitor and settings
  • Display: black OLED high-resolution display
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
  • Master/Slave: for synchronized operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 different dimming curves available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • Flicker: flicker-free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

  • Mains power supply: 100-240 V – 50/60 Hz
  • Max power consumption: 400W
  • Output (at 230 V): 5 units on a single power line
  • Power factor: >0,95

PHYSICAL

  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: hanging bracket suitable for safe hanging and positioning

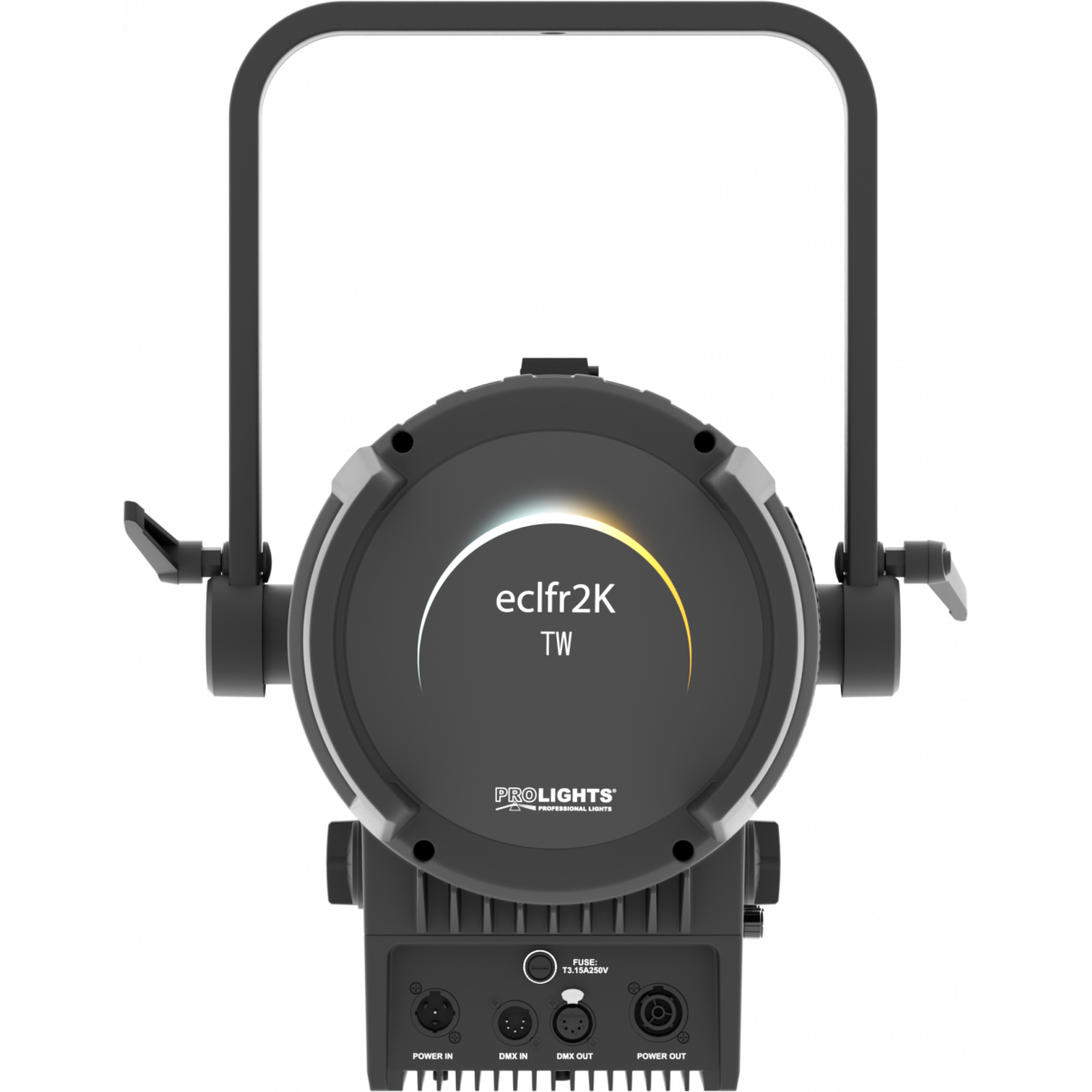

  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • IP rating: 20
  • Dimensions (WxHxD): 421x537x456mm / 16.57”x21.14”x17.95”
  • Weight: 15,8kg / 34.83lbs
