EclSoft Linear IP

Categories: , , , , , , , , , SKU: MUSECL090

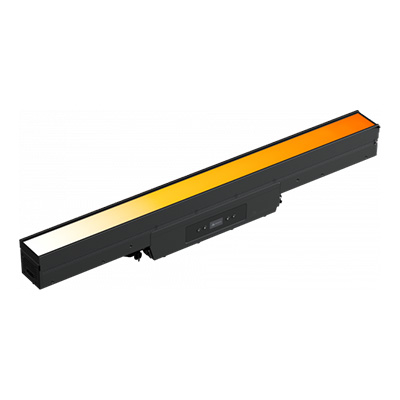

The EclSoft Linear is an IP65 rated linear soft light, with all the main features of the successful EclPanel range, in a new form factor and waterproof design.

Enquiry about EclSoft Linear IP

Enter the security code shown above

Description

Each of its 15 pixels can be controlled individually through DMX/RDM, Ethernet protocols, Wireless DMX (CRMX and W-DMX), or the built-in cinema effects engine.

The EclSoft Linear has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT linear and CCT presets with +/- green shift, source emulation and industry-standard colour gels.
There are several accessories available for the EclSoft Linear, including optical filters and beam shaping accessories.  The 230W RGB + Warm White LED engine producing nearly a 13,000 lumen output, whilst keeping perfectly mixed colours and precise white tones, from tungsten to daylight, maintaining a high CRI, TLCI and TM-30 values.

The onboard driver, built-in power supply, easy rigging and cabling make this fixture the perfect tool for every film, TV or touring production.

Product Features:

  • 230W RGB + Warm White engine, producing nearly a 13,000 lumen output
  • CRI > 92 R9 > 96; TLCI > 87
  • 15 individually controlled pixels with built-in cinema effects engine
  • DMX/RDM control, Ethernet, and Wireless DMX (CRMX + W-DMX)

LIGHT SOURCE

  • Source: 230W RGB + Warm White LED
  • Luminous flux: 12’994lm @4.000 K with LD filter
  • Lux: 220lx @5 m full
  • CRI: 92 @3.200 K; 93 @5.600 K
  • R9: 96 @3.200 K; 92 @5.600 K
  • TLCI: 89 @5.600 K
  • TM30 Rf: 91 @3.200 K; 90 @5.600 K
  • TM30 Rg: 107 @3.200 K; 106 @5.600 K
  • Source life expectancy: > 50.000 h

OPTICS

  • Beam angle: 103°
  • Field angle: 155°
  • Lens type: high-quality glass lens optics
  • Additional optics: Mountable Medium Density diffusion filter (included)

COLOUR SYSTEM

  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / – green correction, tungsten emulation
  • White presets: 2,800 K – 10,000K with 28 K resolution
  • Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

  • Body: sturdy die-cast aluminium body
  • Body colour: black

CONTROL

  • Protocols: DMX512, RDM, Art-Net, W-DMX
  • Pixel control: 15 section control
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 36.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V – 50/60Hz
  • Low Voltage DC mains: 48Vdc
  • Max power consumption: 250W
  • Output (at 230V): 8 units on a single power line
  • Power factor: >0,97

PHYSICAL

  • IP rating: 65 for temporary outdoor use (*)
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Seetronic Ethernet IP IN connector
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Low Voltage DC connector: XLR 3p for 48V
  • Dimensions (WxHxD): 1000x143x87mm / 39.37”x5.63”x3.43”
  • Weight: 7,1kg / 15.65lbs

(*)

  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

CERTIFICATIONS / APPROVALS

  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

  • 1 x ECLSOFTLINEARIP
  • 1 x ESLIPFILTERMD
  • 2 x OS27
  • 1 x 1,5 meters power cable (BARE END – SEETRONIC IP65 power connector)
  • User Manual


MUSECL090 Eclsoft linear IP datasheet .pdf    455.16 KB
