Description

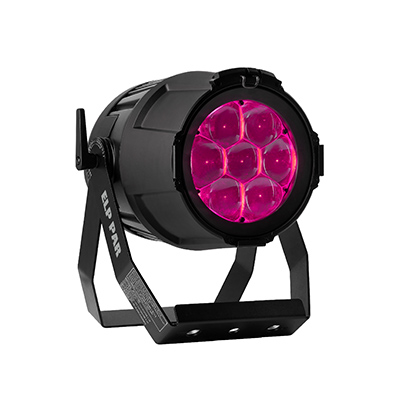

The ELP PAR makes installation faster and easier, thanks to a quick-focus system and bright angle of projection indicators. Other performance enhancements include a wide zoom range that allows both stage illumination and tight mid-air beam effects, an advanced color-calibration system that delivers accurate color reproduction and precise color temperature control, an extended color mode and a CTC channel that can modify RGB channels.
Whether lighting a theatre production, festival, exhibition or corporate event, fill the stage with color and create stunning beam effects with this versatile LED fixture that sets a new performance benchmark in its class.
Product Features:
- Light engine: 7 x 40W RGBW
- Full-gamut color-calibration system
- CTC control: 2,800–10,000 K
- Lumen output: 3,500
- Intensity: 390,000 cd
- Zoom: 4.2 – 58°
- Quick Focus mode allows installation and focusing without the need for a console operator
- Clear of projection indicators allow quick installation
- Angled power and data connections support a clean cable run that does not impede the fixture or installation
- Included truss and floor-mounting yoke with omega bracket connectivity
- Low-noise 33 dB Theatre mode operation
- IP20 rating
- Dimensions: 312 x 287 x 401 mm (12.3 x 11.3 x 15.8 in) (inc. bracket)
- Weight: 7.8 kg (17.2 lbs.)
PHYSICAL
- Length: 312 mm (12.3 in.)
- Width: 287 mm (11.3 in.)
- Height: 401 mm (15.8 in.) with bracket
- Weight: 7.8 kg (17.2 lbs.)
DYNAMIC EFFECTS
- Colour mixing: RGBW
- Colour presets: 48 color presets, virtual color wheel effects
- Colour temperature control: Variable 1,800 – 10,000K
- Electronic dimming: 0 – 100%, four dimming curve options
- Strobe and pulse effects: Variable speed and action, random strobe
- Electronic shutter effect: Instant open and blackout
- Zoom: Motorized
CONTROL AND PROGRAMMING
- Control options: DMX, RDM
- DMX channels: 14
- 16-bit fine control: Dimming, RGB, zoom
- LED colour management modes: Raw, extended and calibrated
- DMX address setting: Control panel with OLED display
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Firmware update: via DMX using Martin Companion
OPTICS
- Light source: 7 x 40 W RGBW Osram LEDs
- Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
- Beam angle (half-peak): 4.2° – 38.7°
- Field angle (one-tenth peak): 5.1° – 58.6°
- Cutoff angle (3%): 5.7° – 69.6°
- Binning: Tight color and flux binning
- Calibration: Full Gamut Color Calibration
- *Figure obtained under manufacturer’s test conditions
PHOTOMETRIC DATA
- Wide beam: 3525 lumens
- Narrow beam: 1445 lumens
- Fixture Center Intensity Narrow Beam: 390083 cd
- Fixture Center Intensity Wide beam: 9957 cd
- CRI (Colour Rendering Index) : >70
- CQS (Colour Quality Scale): 83′
- TM-30 Rf (IES TM-30-15 Fidelity Index): 77
- TM-30 Rg (IES TM-30-15 Gamut Index): 117
- TLCI (Television Lighting Consistency Index): 61
- CCT: 6500 Kelvin
- LED refresh rate – Standard Mode: 3600 Hz
- LED refresh rate – Theatre Mode: 19200 Hz
CONSTRUCTION
- Housing: Aluminum and composite
- Filter mount: 191 x 191 mm (7.5 x 7.5 in.)
- Colour: Black
- Protection rating: IP 20
INSTALLATION
- Mounting points: Adjustable bracket, surface or truss mount (fits Martin Omega Bracket)
- Location: Not for household use, indoor use in dry location only
- Orientation: Any
- Minimum distance to combustible materials: 0.5 m (1.7 ft.)
- Minimum distance to illuminated surfaces: 1 m (3.3 ft.)
- Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)
CONNECTIONS
- AC power input/output: Neutrik PowerCON TRUE1 TOP
- DMX and RDM data in/out: Neutrik 5-pin locking XLR
ELECTRICAL
- AC power: 100-240 V nominal, 50/60 Hz
- Typical power consumption: 300 W
- Typical half-cycle RMS inrush current at 240 VAC: 8.7 A
- Power supply unit: Auto-ranging electronic switch mode
MAXIMUM POWER AND CURRENT
- 100-120 V, 60 Hz : 3.0 A, 320 W, Power factor 0.991
- 220-240 V, 50 Hz: 1.7 A, 320 W, Power factor 0.941
- *Measurements made at nominal voltage with all LEDs at full intensity.
- Allow for a deviation of +/- 10%.
THERMAL
- Maximum surface temperature: 65° C (149° F)
- Cooling: Forced air (temperature regulated, low noise)
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Minimum ambient temperature (Ta min.): -10° C (14° F)
- Total heat dissipation (calculated): 1170 BTU/hr.
ACOUSTIC DATA
- Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.1 dB(A)
- Sound Pressure Level (LpA) @ 1 m (constant fan mode low): 33.0 dB(A)
APPROVALS
