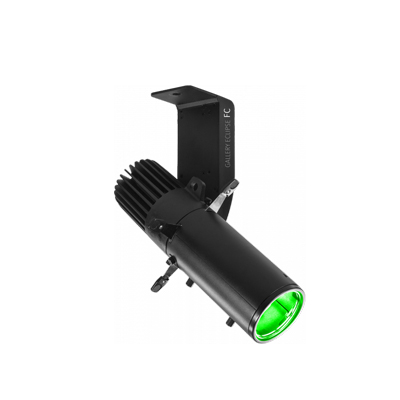

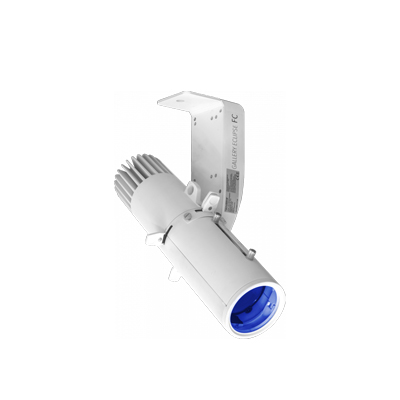

Gallery Eclipse FC

LIGHT SOURCE

• Source:

  60W RGBW Osram LED

• Luminous flux:

  (19°) 458 lm (36°) 570 lm
• Lux: (19°) 570 lux @3m full
• Lux:(36°) 166 lux @3m full
• Source life expectancy: >30.000 h

OPTICS

• Zoom: 19°~36° manual
• Lens type: high-quality glass lens optics
• Focus: manual

COLOUR SYSTEM

• Colour mixing: RGBW/FC
• CTC: CTC control through independent DMX channel
• White presets: 2800-10000K
• Colour wheel: virtual colour wheel with presets

DYNAMIC EFFECTS

• Gobo size: E, gobo Ø 37.5 mm – img Ø 26 mm – thickness 0.5 mm
• Static colour mode: selection of static colour
• Manual colour mode: manual adjustment of colour
• Auto mode: built-in programs with execution speed adjustment

BODY

• Hardware on-board: Tilt lock on arm
• Body: sturdy die-cast aluminium body conceived for long-time durability
• Body colour:black

CONTROL

• Protocols:W-DMX
• DMX channels:4 / 6 / 11 channel
• W-DMX: included, wireless solution receiver
• Display: black OLED high resolution display

ELECTRONICS

• Dimmer: linear 0~100% electronic dimmer
• Dimmer curves:4 different dimming curves available
• Strobe / shutter: 1-30Hz, electronic
• Operating temperature: -10° ~ +45°
• Flicker:flicker free operation

ELECTRICAL

• Power supply:100-240V – 50/60Hz
• Power consumption (at 230V):43.5W
• Power consumption (at 120V):43.8W

PHYSICAL

• Cooling:natural cooling of the peculiar chassis and to absence of fans

• Data connection:W-DMX

  Power connection: moulded IP power IN connector
• IP rating:30
• Dimensions (WxHxD):183x230x338mm
• Weight:2.9kg
